HF ONYX IV

DESCRIPTION

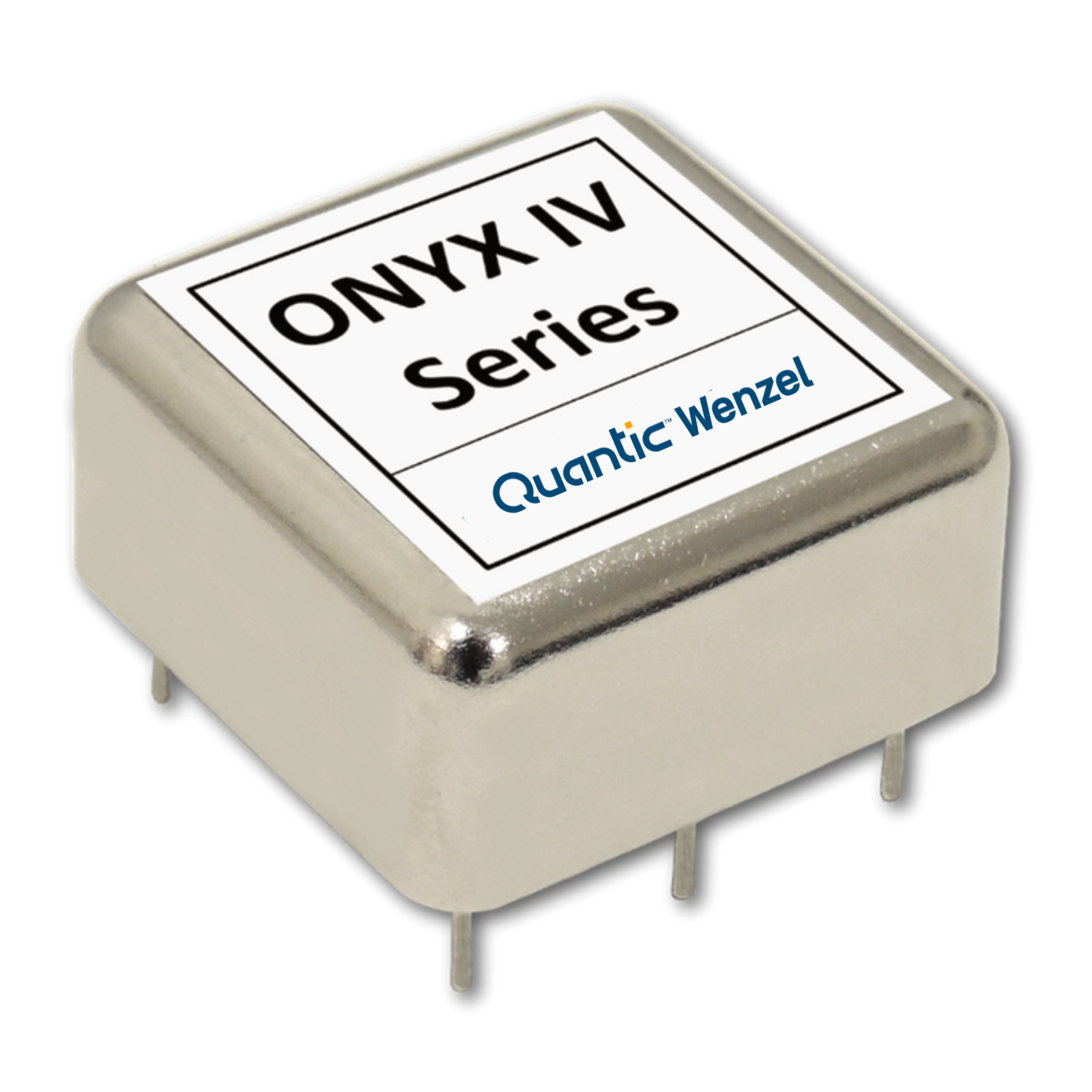

The HF ONYX IV is a small lightweight rugged OCXO featuring low phase noise, good temperature stability and low g-sensitivity (to <1E-10/g per axis). Designed for Commercial and Military PCB mount applications, it provides excellent phase noise performance during vibration. The nickel-plated steel package is 1” x 1” x 0.5”. An internal voltage regulator is provided for excellent power supply line rejection. Please contact technical staff to discuss custom requirements.

FEATURES:

  •  Output Frequency: 10 MHz to 25 MHz
  •  Rugged/Low Cost/High Performance
  •  Low Phase Noise (to -176 dBc/Hz)
  •  Low G-Sensitivity (to 1E-10/g per axis)
  •  Thru Hole PCB Mount
  •  Internal Voltage Regulator

APPLICATIONS:

  •  Military Applications
  •  Airborne, Ground, Shipboard
  •  Test Equipment
  •  Synthesizers
  •  Base Stations
  •  Portable Transceivers



Typical Specifications

HF ONYX IV Typical Specs

Mechanical Drawing

HF ONYX IV mechanical
