Frequency Sources

Wenzel Associates offers a wide variety of low noise frequency sources configured as sub-assemblies or rack mounted instruments with one output frequency or multiple output frequencies to 16 GHz. Each source includes one or more industry leading Ultra Low Noise Ovenized Crystal oscillator, Blue Tops RF Modules and other hardware necessary to provide a high performance frequency source with unparalleled phase noise performance. Custom features, custom modules and custom systems are available with short development time and low cost.
Model Description Application Phase Noise (100 kHz) Size
QRb Sync w-background
OCXO + Rubidium
  • QRb Sync
  • Industry Leading ULN Oscillators and Disciplined Rubidium Combined
  • Exceptional Phase Noise
  • Excellent Stability
  • Low G-Sensitivity
  • Internal Vibration Isolation Options
  • Auto Adaptive Smartiming+
High Dynamic Platforms
Tactical Helicopter
Tactical Airborne
Drone (UAV/UGA)
Shipboard
Ground Communications
Mobile Satcom
Tactical Aerial Radar
10 MHz: -165 dBc/Hz
100 MHz: -176 dBc/Hz
6 x 5.7 x 1.1"
6 x 5.7 x 1.4"
Model Description Application Phase Noise (100 kHz) Size
Plate 26733_bg
Plate Assemblies
  • Crystal Oscillator(s) and/or RF Modules Mounted on an Aluminum Plate
  • Customer Selected Frequencies from 5 MHz to 16 GHz, fixed
  • Multiple Frequency / Multiple Output Options
  • Low, Ultra Low & Golden Phase Noise Performance Options
  • Phase Locking with External Reference Option
  • Low Noise Voltage Regulator Option
  • Supply Voltage: +12 VDC to +24 VDC, specify
Bench Reference
Radar Systems
Communication Systems
Instruments
Frequency Specific
(Consult Factory)
Configuration Dependent
(Consult Factory)
Model Description Application Phase Noise (100 kHz) Size
VME 1_bg

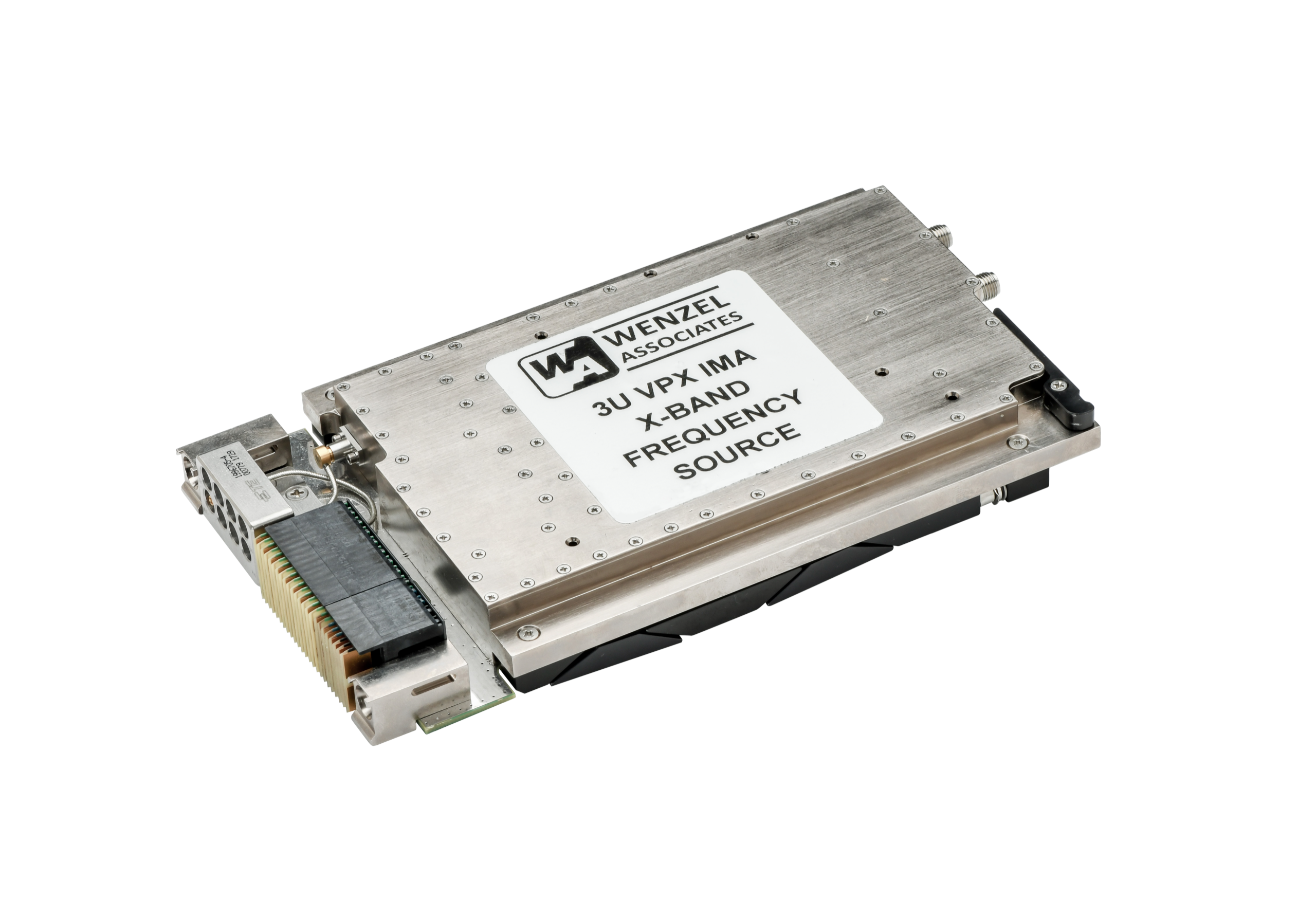

Card Assemblies
  • Frequency Source or Frequency Conversion Modules
  • VME, VXI, VPX and other Card Assembly Form Factors Available
  • Customer Selected Frequencies from 5 MHz to 16 GHz
  • Multiple Frequency / Multiple Output Options
  • Low, Ultra Low & Golden Phase Noise Performance Options
  • Phase Locking with External Reference Option
  • Low Noise Voltage Regulator Option
  • Supply Voltage: +12 VDC to +24 VDC, specify
Synthesizer
Radar Systems
Communication Systems
Instruments
Frequency Specific
(Consult Factory)
Configuration Dependent
(Consult Factory)
Model Description Application Phase Noise (100 kHz) Size
Sorcerer_bg
Custom Enclosures
  • Crystal Oscillator(s) and/or RF Modules Mounted within an Enclosure
  • Machined Aluminum Compact Case Assembly
  • Customer Selected Frequencies from 5 MHz to 16 GHz
  • Multiple Frequency / Multiple Output Options
  • Low, Ultra Low & Golden Phase Noise Performance Options
  • Phase Locking with External Reference Option
  • Low Noise Voltage Regulator Option
  • Supply Voltage: +12 VDC to +24 VDC, specify
Bench Reference
Radar Systems
Communication Systems
Instruments
Frequency Specific
(Consult Factory)
Configuration Dependent
(Consult Factory)
