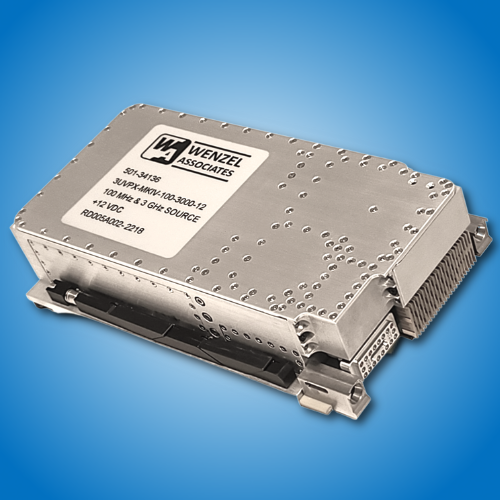

Card Assemblies

Wenzel Associates’ offers card assemblies in several standard form factors (VME, VXI, etc.) as well as custom configurations to provide one or multiple low noise frequencies to 16 GHz. Each card assembly is comprised of one or more industry leading Ultra Low Noise Ovenized Crystal oscillators, Blue Tops RF Modules and other hardware mounted or integrated on a card assembly, to provide a high performance frequency source with unparalleled phase noise performance. These card assemblies can be plugged into the respective backplane platform and are suitable for use as a low noise frequency source or clocking signal as a key element in a system. Custom card assemblies are available with short development time and low cost.

Model Description Application Phase Noise (100 kHz) Size
VME 1_bg

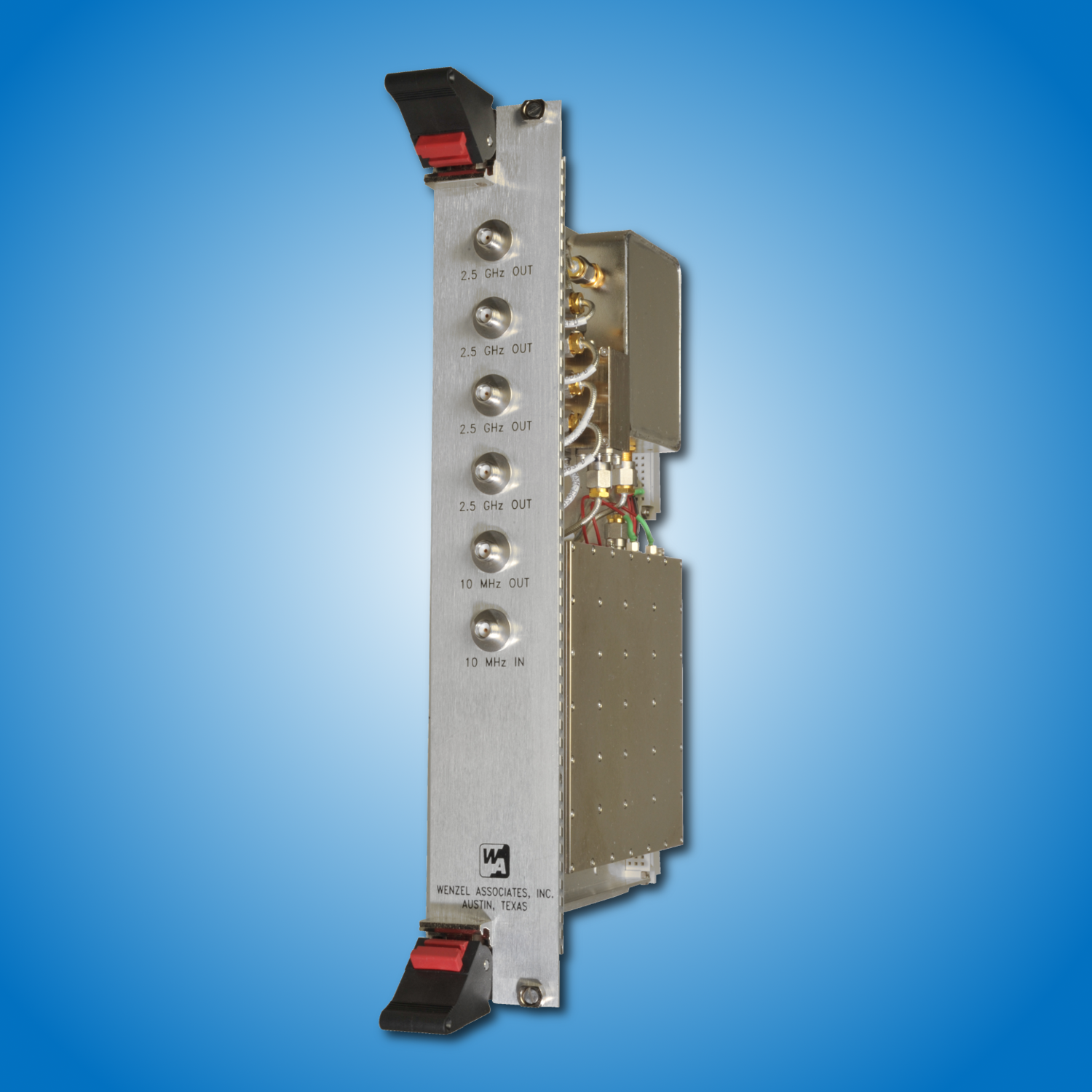

VME-1
  • 10 MHz & 2.5 GHz Phase Lock VME Assembly
  • 2-Slot VME Card Configuration
  • Low Noise 10 MHz PLO and 2.5 GHz MXO
  • Phase Locks to External 10 MHz Reference When Available
  • Excellent Spectral Purity
  • SMA(f) Connectors on Front Panel
  • One 10 MHz Output (+7 dBm)
  • Four 2.5 GHz Outputs (+7 dBm, each output)
  • Low Noise Voltage Regulator Included
General Frequency Source
Mobile Tranceivers
Instrument Reference
10 MHz, -165 dBc/Hz
2.5 GHz, -142 dBc/Hz
2-Slot VME
Model Description Application Phase Noise (100 kHz) Size
VME 2_bg

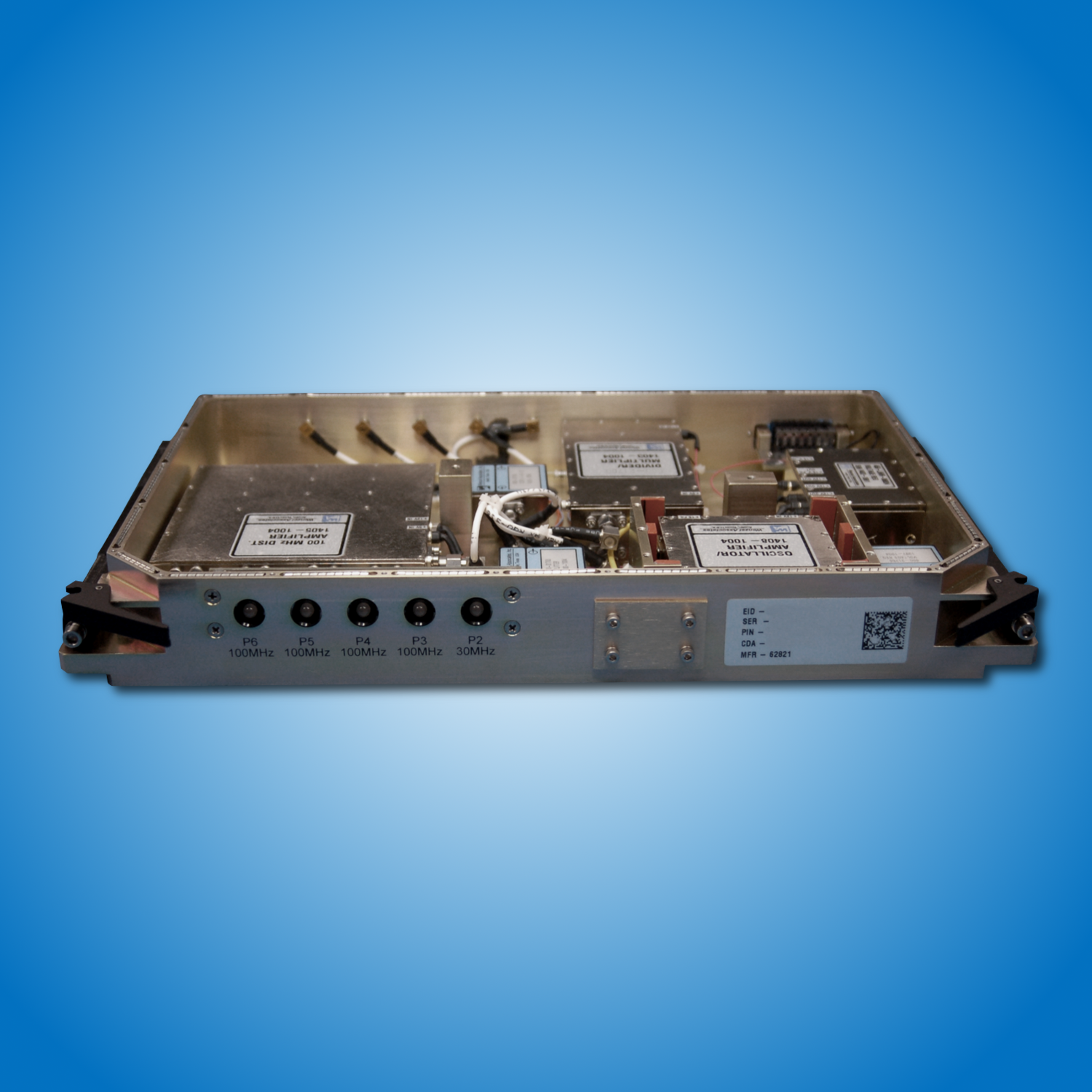

VME-2
  • VME Reference Module Assembly
  • 2-Slot VME Card Configuration
  • Ruggedized for Operation in Dynamic Environments
  • Ultra Low Noise Vibration Isolated 100 MHz OCXO
  • Excellent Spectral Purity
  • SMA(f) Connectors on Rear Panel
  • One 30 MHz Output (+10 dBm)
  • Four 100 MHz Outputs (+10 dBm, each output)
  • LED Signal Monitoring on Front Panel
  • Low Noise Voltage Regulator Included
Airborne & Ground Applications
Mobile Tranceivers
Radar Systems
Signal Distribution
30 MHz, -165 dBc/Hz
100 MHz, -176 dBc/Hz
2-Slot VME
Model Description Application Phase Noise (100 kHz) Size
VME 3_bg

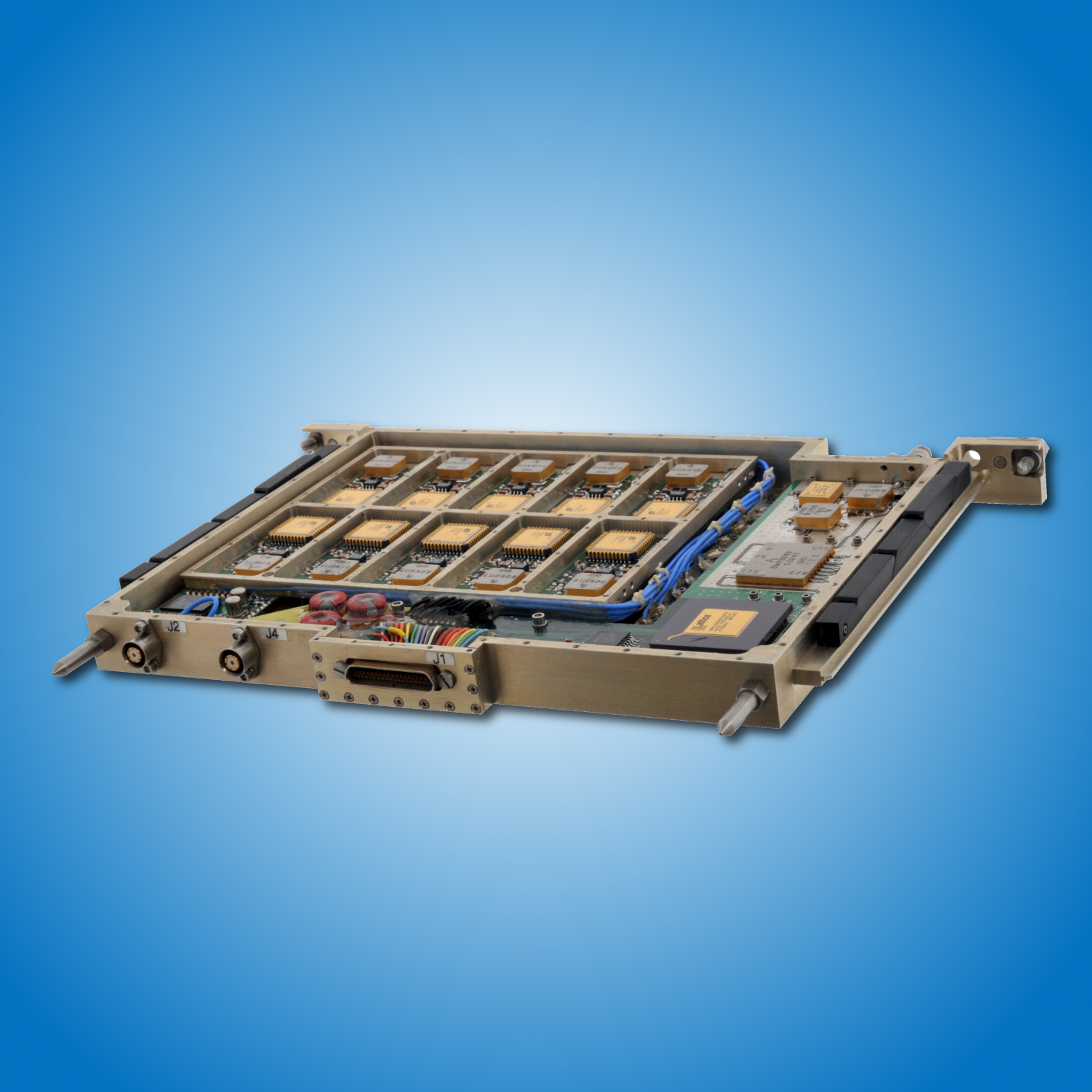

VME-3
  • Fast Switching Local Oscillator Assembly
  • Frequency Hopping for Secure Communications
  • VME Card Configuration
  • Phase Locks to External Reference
  • Ruggedized for Operation in Dynamic Environments
  • Vibration Isolated Multiple VCO Tray
Military/Airborne
Secure Communication Systems
Signal Synchronization
-140 dBc/Hz 2-Slot VME
Model Description Application Phase Noise (100 kHz) Size
VME 4_bg

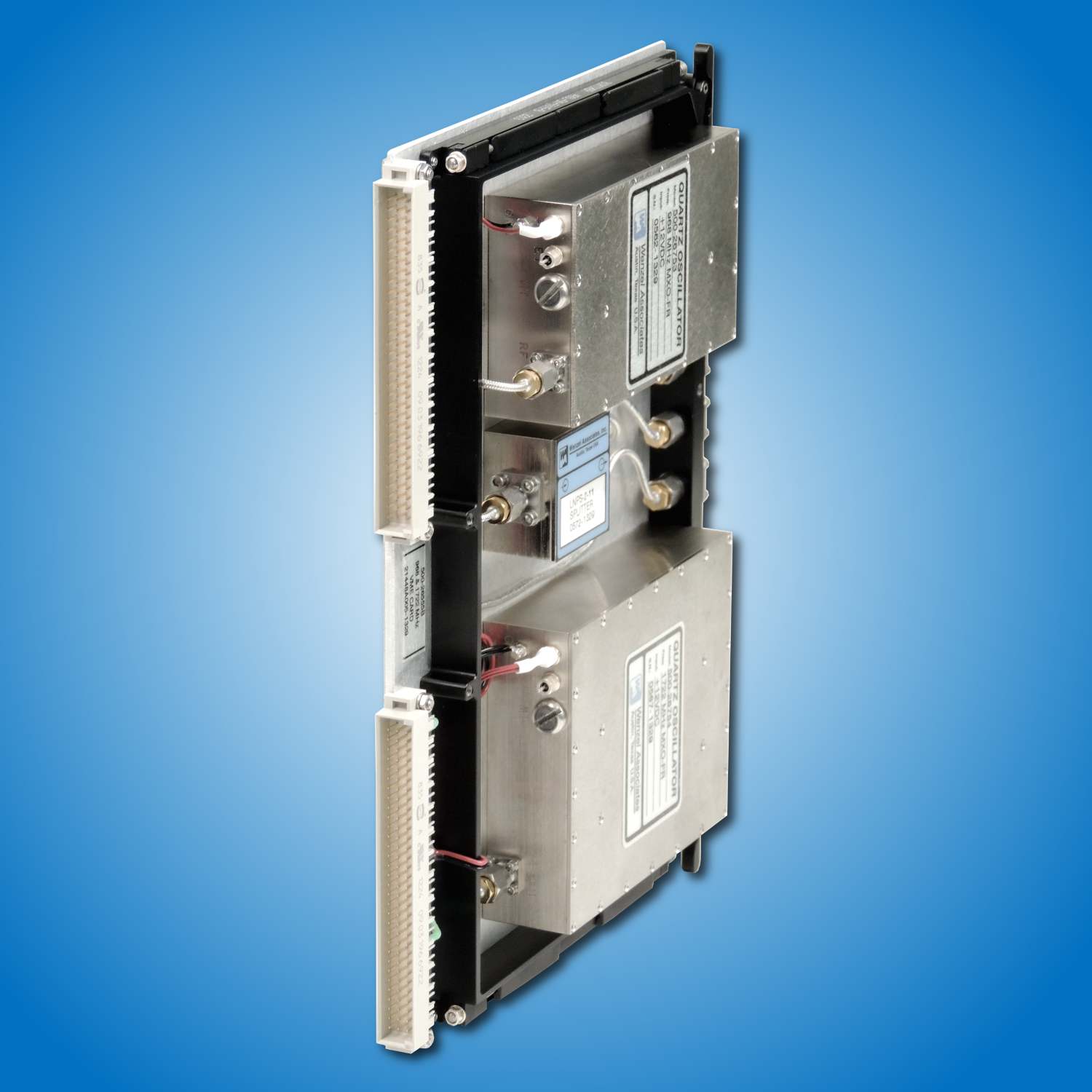

VME-4
  • 970 MHz & 1.7 GHz VME Card Assembly
  • 6U Dual Slot VME64X Card, Conduction Cooled with Wedge-Locks
  • MXO Series Ultra Low Noise Oscillators
  • Excellent Spectral Purity
  • SMA(f) Connectors on Front Panel
  • Two 970 MHz Outputs (+10 dBm, each output)
  • One 1.7 GHz Output (+10 dBm)
General Frequency Source
Mobile Tranceivers
Instrument Reference
Radar Systems
970 MHz, -153 dBc/Hz
1.7 GHz, -147 dBc/Hz
6U Dual Slot VME64X
Model Description Application Phase Noise (100 kHz) Size
VXI-1_bg

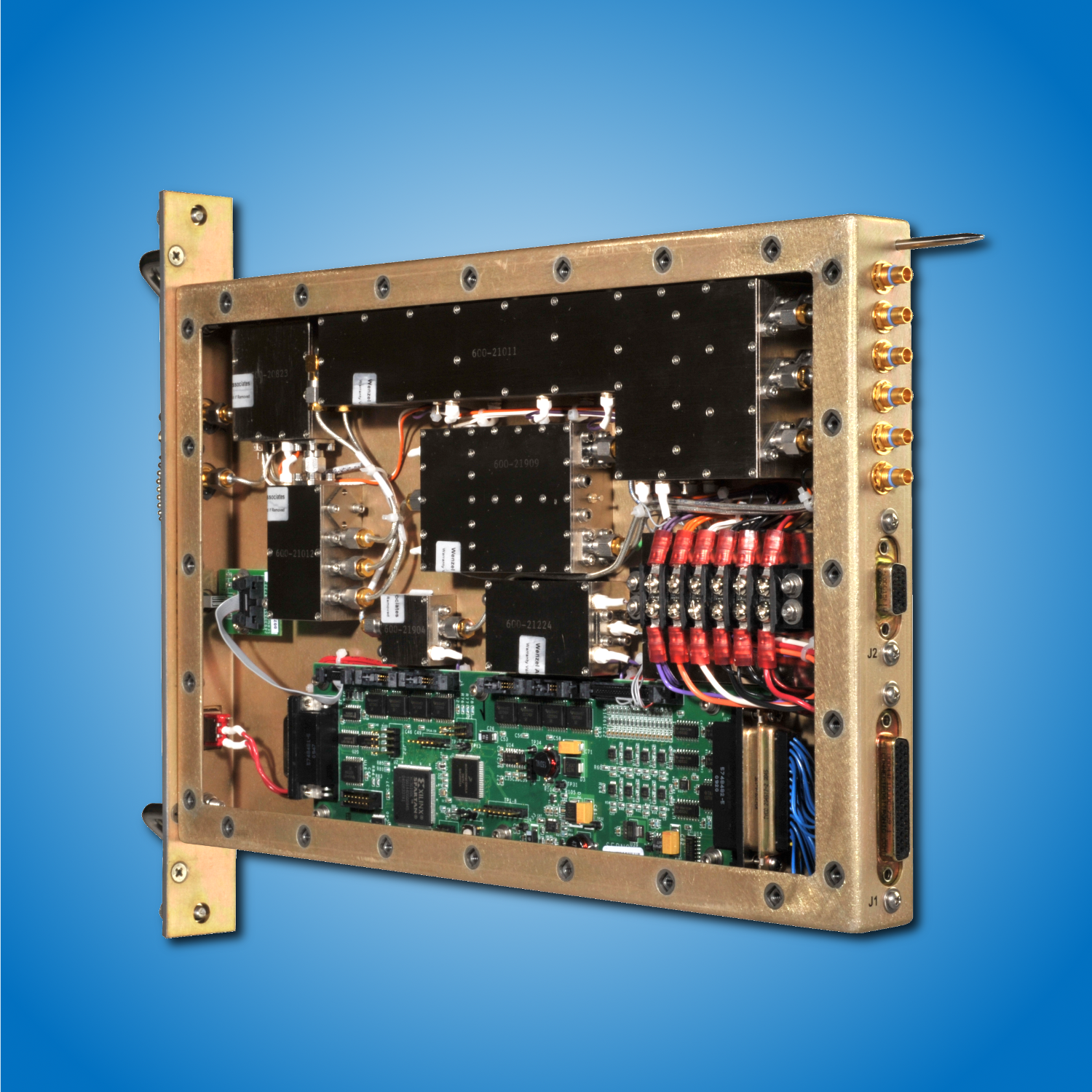

VXI-1
  • Tone Generator Assembly
  • VXI-Style Card Platform
  • Ruggedized for Operation in Dynamic Environments
  • 120 MHz VHF ULN II Base Oscillator
  • Provides 120 MHz, 160 MHz, 1.2 GHz and 1.92 GHz Signals
  • Excellent Spectral Purity
  • System Interface Capability
  • Low Noise Voltage Regulator Included
System Synchronization
Mobile Tranceivers
Instrument Reference
Radar Systems
120 MHz, -176 dBc/Hz
160 MHz, -153 dBc/Hz
1.2 GHz, -154 dBc/Hz
1.92 GHz, -148 dBc/Hz
11.5" x 14.5" x 1.36"
