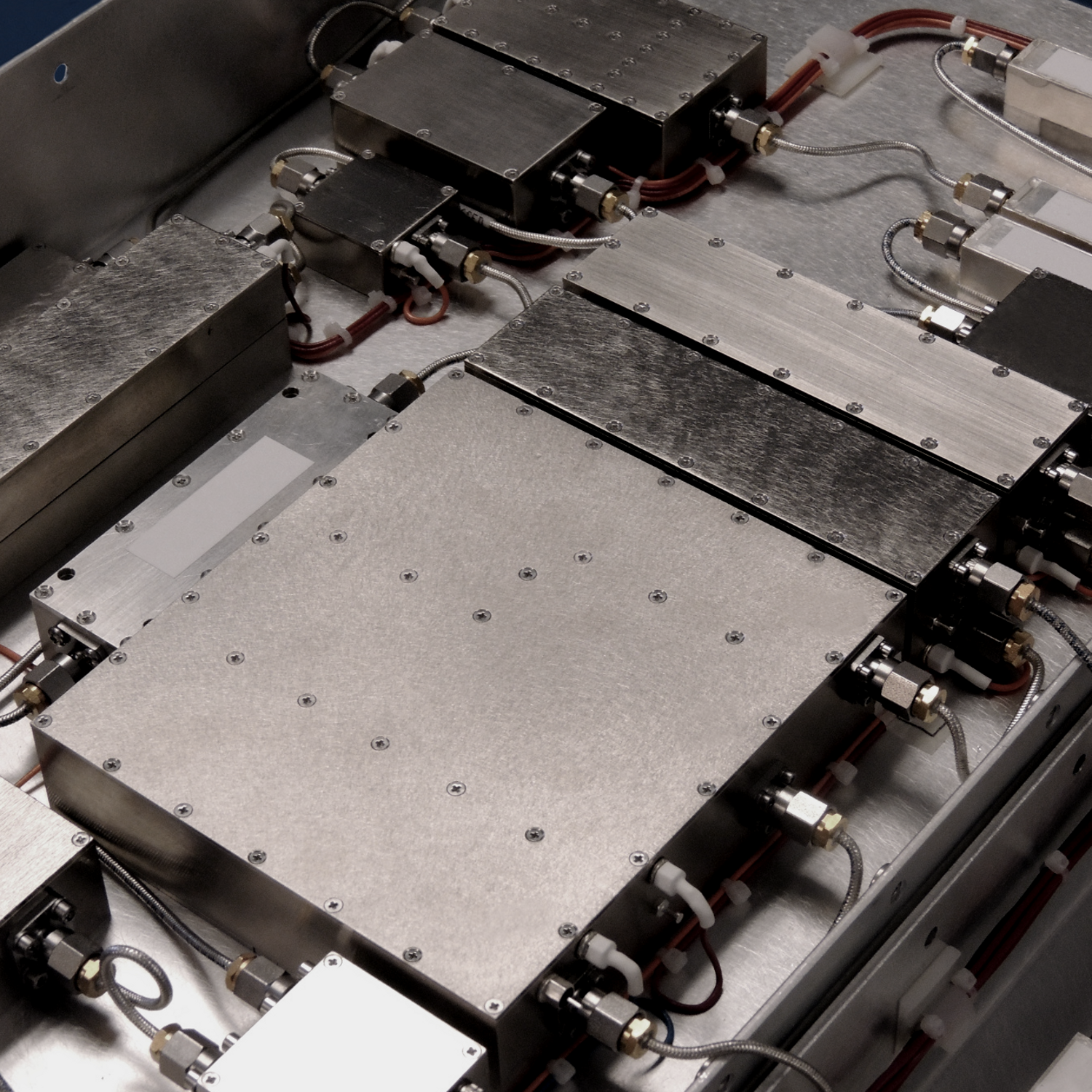

Custom Enclosures

Wenzel Associates’ offers custom enclosures which are comprised of one or more industry leading Ultra Low Noise Ovenized Crystal oscillators, Blue Tops RF Modules and other hardware mounted within an aluminum enclosure. The result is a high performance frequency source with unparalleled phase noise performance which provides one or multiple output frequencies to 16 GHz. These enclosures are suitable for use as a bench top frequency standard or mounting within a larger assembly as part of a system. Custom enclosures are available with short development time and low cost.

Model Description Application Phase Noise (100 kHz) Size
Enclosure 12778_bg
501-12778
  • 500 MHz Dual Output Phase Lock Sorcerer
  • ULN OCXO and BT RF Modules within an Enclosure
  • Ultra Low Phase Noise
  • Dual 500 MHz Outputs
  • Phase Locks to External 10 MHz Reference When Present
  • Sine, +10 dBm, each output
  • Compact Case Machined Aluminum Enclosure
General Purpose Reference
System Synchronization
Radar Systems
500 MHz: -158 dBc/Hz 5 x 6 x 2.62"
Model Description Application Phase Noise (100 kHz) Size
Enclosure 27909_bg
501-27909

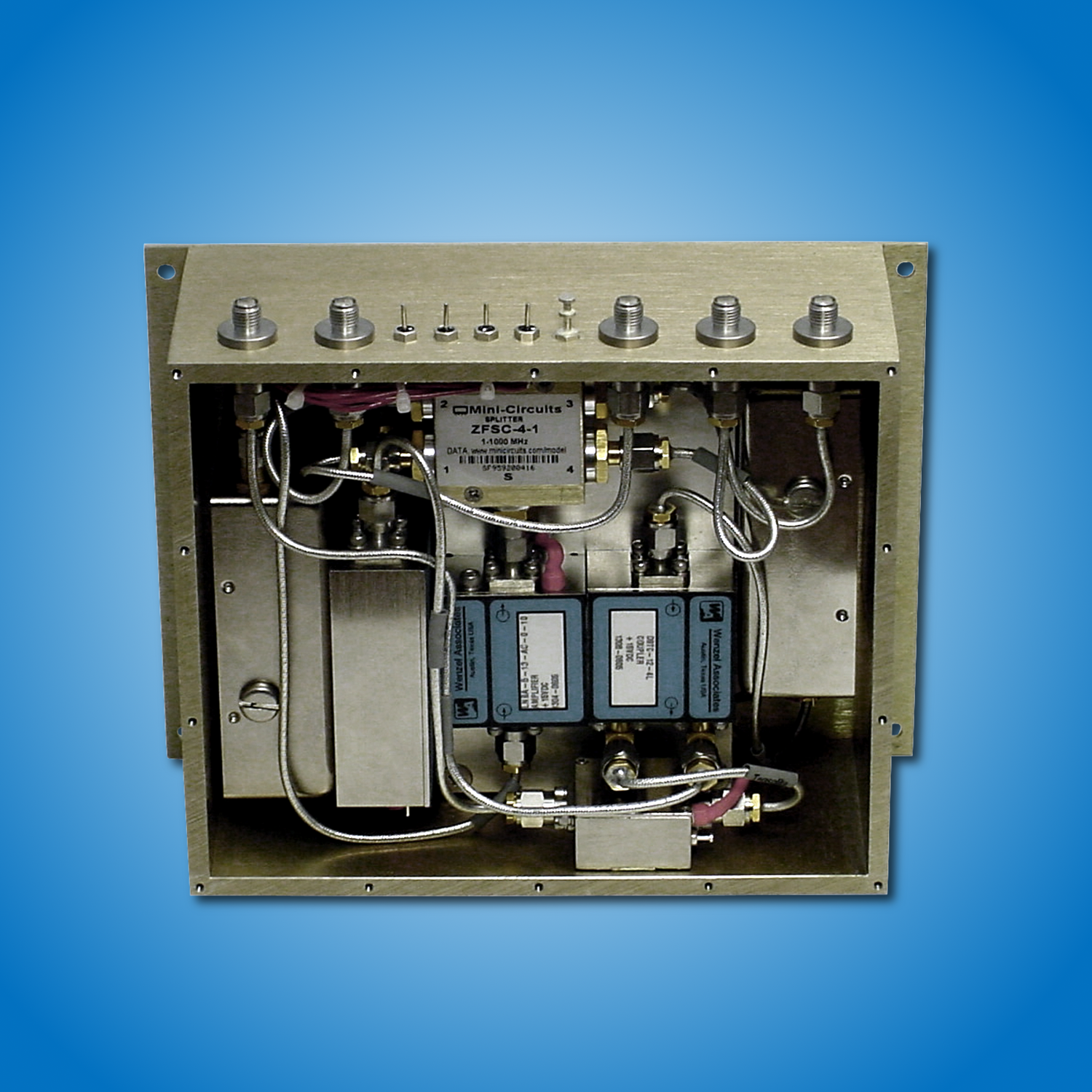

  • Multiplier/Switching Assembly (MSA)
  • ULN OCXOs and BT RF Modules within an Enclosure
  • Ruggedized for Operation in Dynamic Environments
  • Dual Frequency STALO System (Switchable)
  • Input Frequencies from ~97 MHz to ~104 MHz
  • Output Frequencies from ~7.7 GHz to ~8.3 GHz
  • Ultra Low Phase Noise Performance
  • Excellent Spectral Purity
  • Output: Sine, > +25 dBm
  • Custom Machined Aluminum Enclosure
Radar Systems
Communication Systems
System Integration
~8 GHz: -134 dBc/Hz 8 x 6 x 4.125"
Model Description Application Phase Noise (100 kHz) Size
Enclosure 27841_bg
501-27841

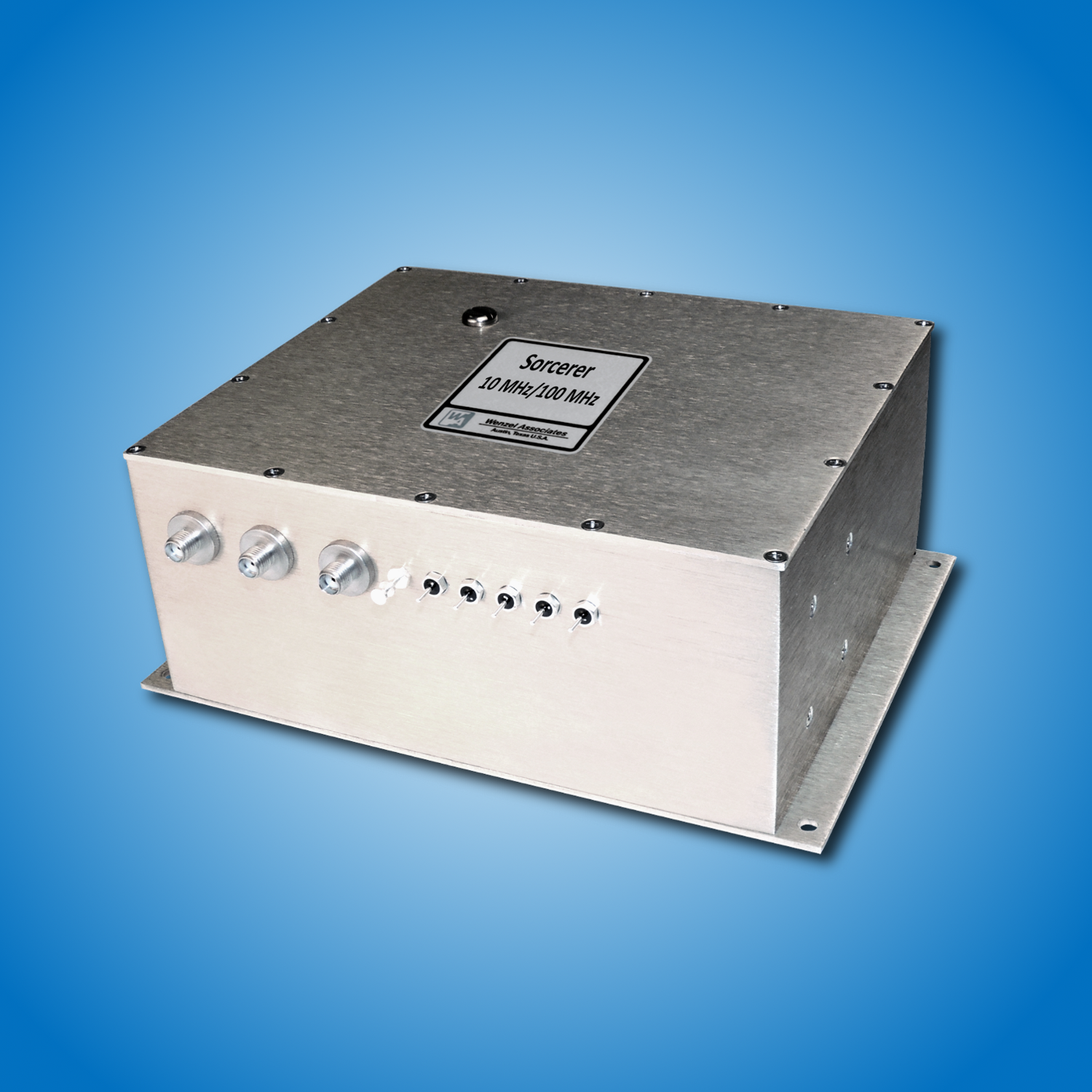

  • 10 MHz & 100 MHz Phase Lock Sorcerer
  • ULN OCXOs and BT RF Modules within an Enclosure
  • Ultra Low Phase Noise
  • Excellent Spectral Purity
  • Phase Locks to External 10 MHz Reference When Present
  • 10 MHz Output: Sine, +12 dBm
  • 100 MHz Output: Sine, +13 dBm
  • Compact Case Machined Aluminum Enclosure
General Purpose Reference
System Synchronization
Radar Systems
10 MHz: -175 dBc/Hz
100 MHz: -176 dBc/Hz
5 x 6 x 2.62"
Model Description Application Phase Noise (100 kHz) Size

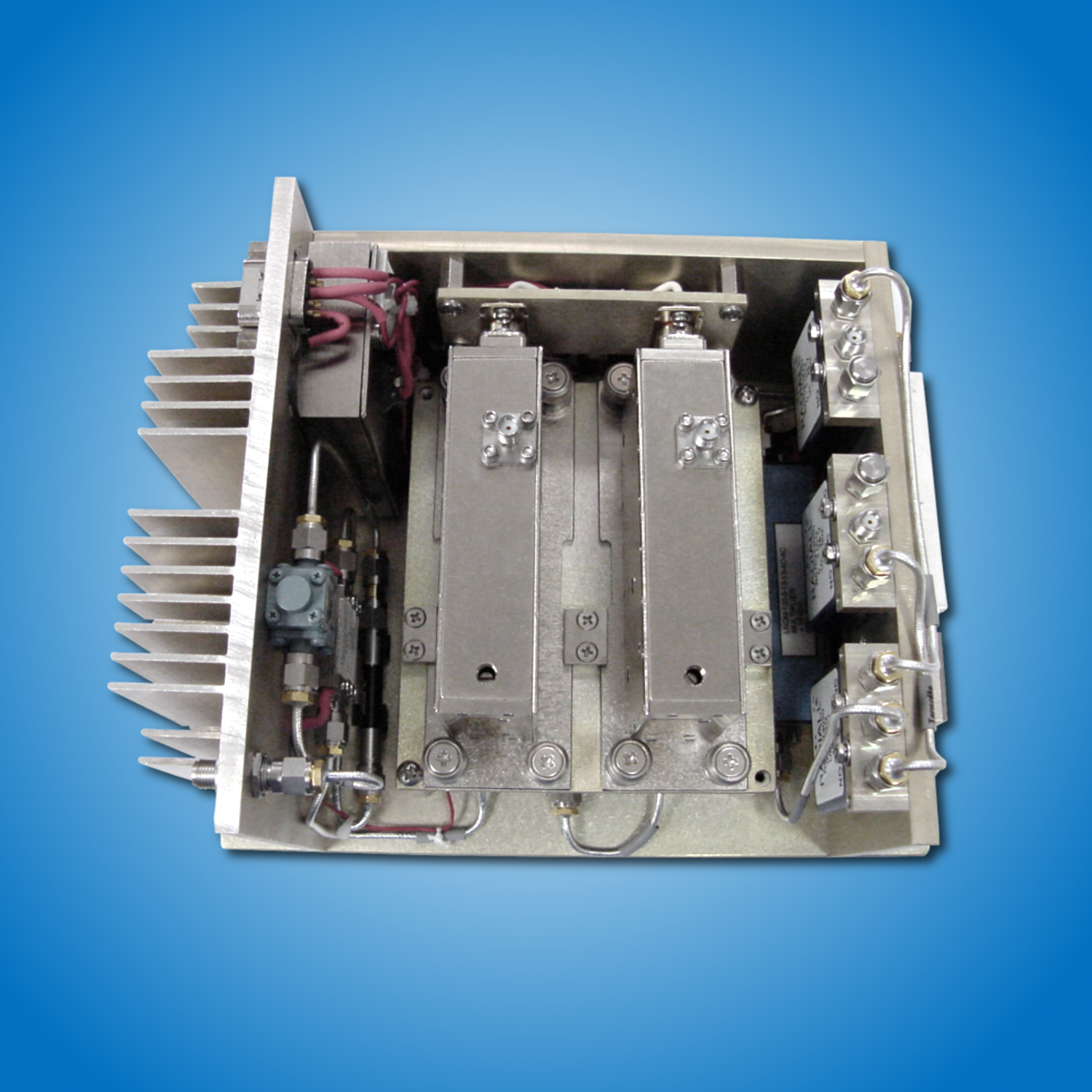

Enclosure 27907_bg
501-27907
  • 5 MHz & 100 MHz Sorcerer
  • Low Noise OCXOs and BT RF Modules within an Enclosure
  • Low Phase Noise
  • Excellent Spectral Purity
  • 100 MHz OCXO Phase Locked to Internal 5 MHz OCXO
  • Four 5 MHz Outputs; One 100 MHz Output
  • 5 MHz Output: Sine, +10 dBm, each output
  • 100 MHz Output: Sine, +10 dBm
  • Compact Case Machined Aluminum Enclosure
General Purpose Reference
System Synchronization
Radar Systems
10 MHz: -170 dBc/Hz
100 MHz: -170 dBc/Hz
5 x 6 x 2.62"
Model Description Application Phase Noise (100 kHz) Size
Enclosure 27908_bg
501-27908

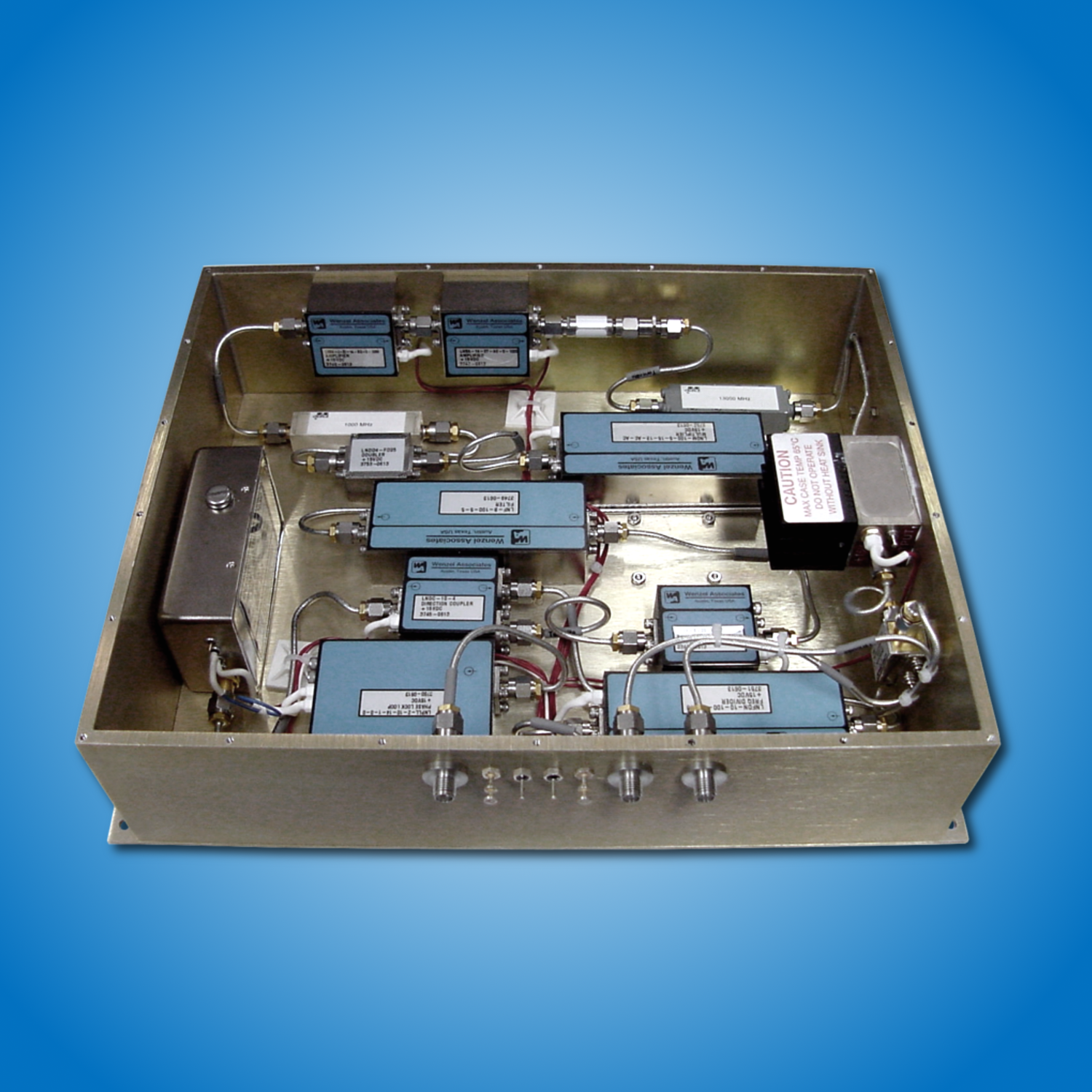

  • 13 GHz Dual Output Phase Lock Sorcerer
  • ULN OCXO and BT RF Modules within an Enclosure
  • Ultra Low Phase Noise
  • Excellent Spectral Purity
  • Phase Locks to External 10 MHz Reference When Present
  • Dual 13 GHz Outputs
  • Sine, +9 dBm, each output
  • Compact Case Machined Aluminum Enclosure
General Purpose Reference
System Synchronization
Radar Systems
13 GHz: -131 dBc/Hz 8 x 10 x 2.62"
