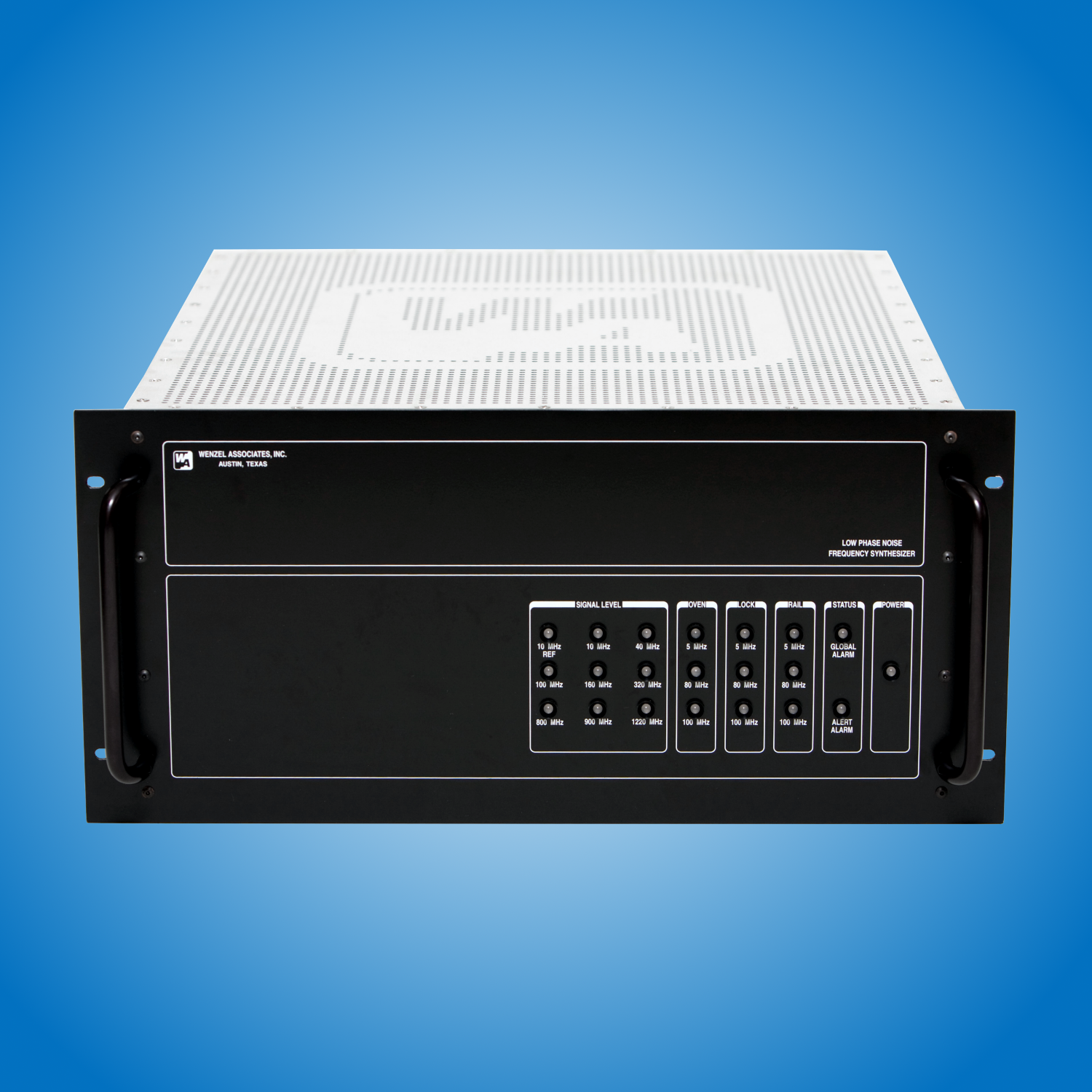

Low Noise Rack Mount

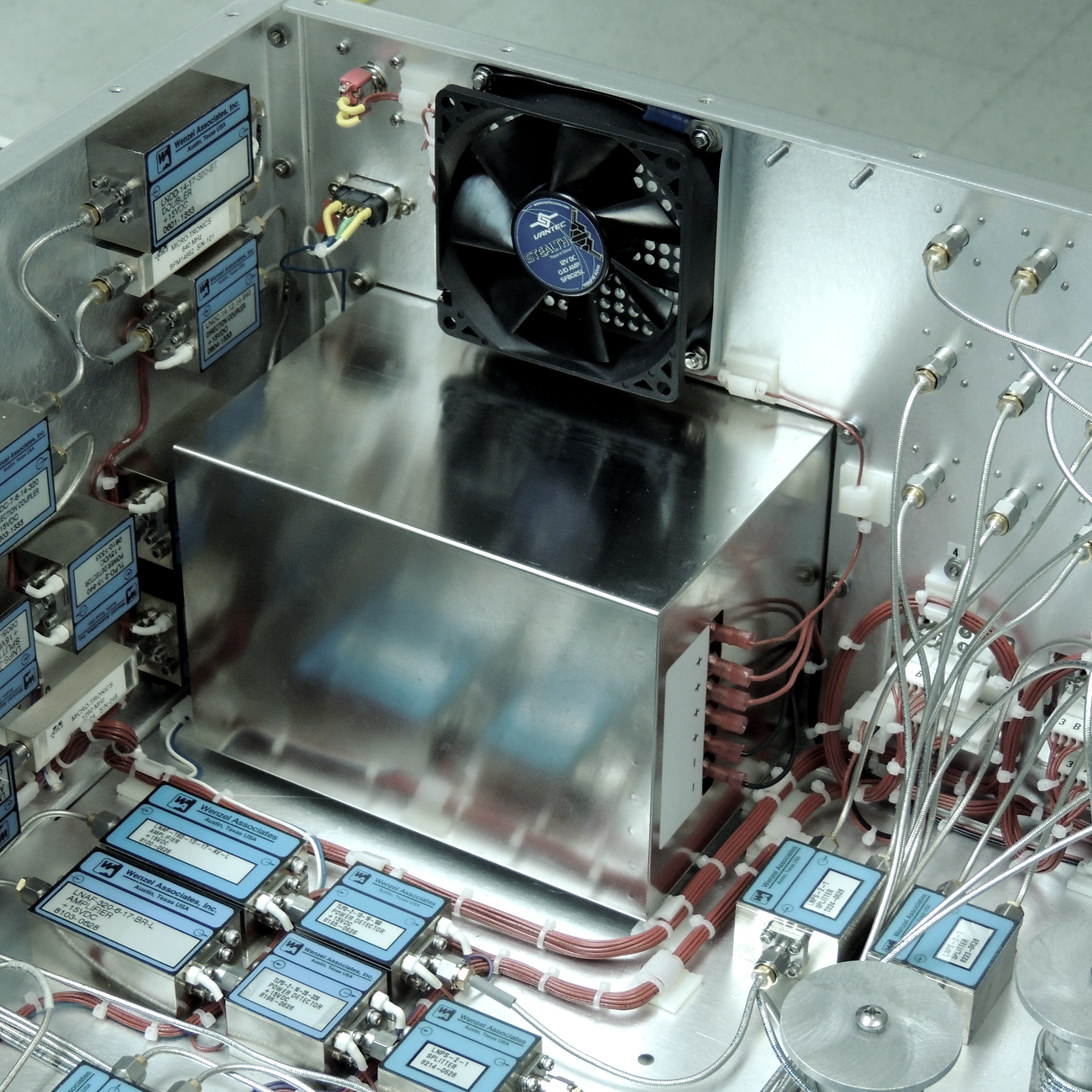

Wenzel Associates’ instruments combine industry leading ultra-low phase noise performance with standard 19” rack mount configurations (1U, 2U, 3U and 5U). A variety of standard rack source solutions are available with pre-configured output frequencies, but custom solutions are also available. Delivers superior performance at a lower cost than a variable low noise frequency synthesizer with the flexibility of providing only the fixed frequencies needed for requirement. Please complete the Custom Instrument RFQ Form if you need something other than our standard offerings below.

Model Description Application Phase Noise (100 kHz) Size
Inst 27899
500-13438D
  • Low Phase Noise PL Frequency Source
  • Output Frequencies: 10 MHz & 1 GHz, fixed
  • Includes 10 MHz ULN OCXO and 500 MHz MXO (x2)
  • Standard 19" Rack Mount Chassis (2U)
  • Phase Locks to External 10 MHz Reference
  • RF Outputs: SMA(f) Connectors, Front Panel
  • Sine, +13 dBm, Standard, each output
  • ET Control of 10 MHz and 1 GHz Signals, rear panel
  • Excellent Spectral Purity
  • 120 VAC or 240 VAC 50/60 Hz, selectable
General Purpose Standard
System Frequency Source
Calibration Standard
10 MHz, -175 dBc/Hz
1 GHz, -151 dBc/Hz
Std 19" Rack Mount 2U, 17" Depth
Model Description Application Phase Noise (100 kHz) Size
Inst 27277
501-27277

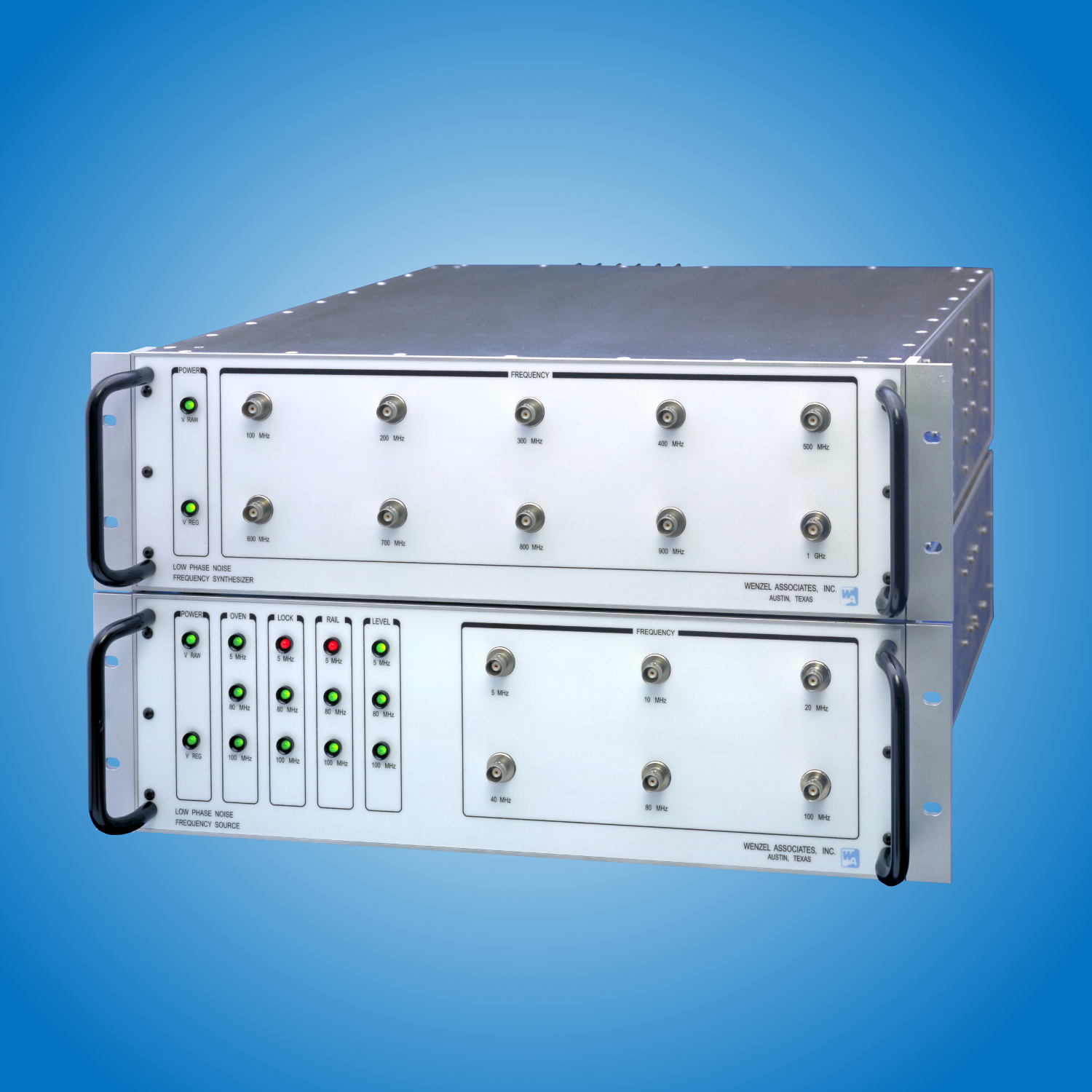

  • Ultra Low Phase Noise Frequency Synthesizer
  • 10 Output Frequencies from 100 MHz to 8 GHz, fixed
  • All Frequencies Created from (1) 100 MHz ULN OCXO
  • Standard 19" Rack Mount Chassis (3U)
  • RF Outputs: SMA(f) Connectors, Front Panel
  • Sine, +8 dBm, Standard, each output
  • Excellent Spectral Purity
  • Supply Voltage: 120 VAC, 60 Hz, < 4 Amps
General Purpose Standard
Radar Test Set
System Frequency Source
100 MHz, -173 dBc/Hz
200 MHz, -167 dBc/Hz
300 MHz, -163 dBc/Hz
400 MHz, -161 dBc/Hz
500 MHz, -158 dBc/Hz
800 MHz, -155 dBc/Hz
1000 MHz, -151 dBc/Hz
2000 MHz, -145 dBc/Hz
4000 MHz, -139 dBc/Hz
8000 MHz, -133 dBc/Hz
Std 19" Rack Mount 3U, 22" Depth
Model Description Application Phase Noise (100 kHz) Size
Inst 27278
501-27278
  • Ultra Low Phase Noise PL Frequency Synthesizer
  • 10 Output Frequencies from 100 MHz to 8 GHz, fixed
  • All Frequencies Created from (1) 100 MHz ULN OCXO
  • Standard 19" Rack Mount Chassis (3U)
  • Phase Locks to External 10 MHz Reference
  • RF Outputs: SMA(f) Connectors, Front Panel
  • Sine, +8 dBm, Standard, each output
  • Excellent Spectral Purity
  • Supply Voltage: 120 VAC, 60 Hz, < 4 Amps
General Purpose Standard
Radar Test Set
System Frequency Source
100 MHz, -173 dBc/Hz
200 MHz, -167 dBc/Hz
300 MHz, -163 dBc/Hz
400 MHz, -161 dBc/Hz
500 MHz, -158 dBc/Hz
800 MHz, -155 dBc/Hz
1000 MHz, -151 dBc/Hz
2000 MHz, -145 dBc/Hz
4000 MHz, -139 dBc/Hz
8000 MHz, -133 dBc/Hz
Std 19" Rack Mount 3U, 22" Depth
Model Description Application Phase Noise (100 kHz) Size
Wizard
501-10301
  • Low Phase Noise PL Frequency Source
  • Output Frequencies: 5 MHz & 10 MHz, fixed
  • Includes 5 MHz ULN OCXO and x2 to Create 10 MHz
  • Standard 19" Rack Mount Chassis (2U)
  • Phase Locks to External 5 or 10 MHz Reference
  • SMA(f) Connectors, Rear Panel (3 per frequency)
  • Sine, +13 dBm, Standard, each output
  • Excellent Spectral Purity
  • 115 VAC or 240 VAC 50/60 Hz, selectable
General Purpose Standard
System Frequency Source
Low Noise Signal Distribution
-174 dBc/Hz (5 MHz)
-169 dBc/Hz (10 MHz)
Std 19" Rack Mount 2U, 17" Depth
Model Description Application Phase Noise (100 kHz) Size
Wizard
501-10302
  • Low Phase Noise PL Frequency Source
  • Output Frequencies: 5 MHz & 10 MHz, fixed
  • Includes 5 MHz ULN OCXO and 10 MHz ULN
  • Standard 19" Rack Mount Chassis (2U)
  • Phase Locks to External 5 or 10 MHz Reference
  • SMA(f) Connectors, Rear Panel (3 per frequency)
  • Sine, +13 dBm, Standard, each output
  • Excellent Spectral Purity
  • 115 VAC or 240 VAC 50/60 Hz, selectable
General Purpose Standard
System Frequency Source
Low Noise Signal Distribution
5 MHz, -174 dBc/Hz
10 MHz, -174 dBc/Hz
Std 19" Rack Mount 2U, 17" Depth
Model Description Application Phase Noise (100 kHz) Size
Wizard
501-10303
  • Low Phase Noise PL Frequency Source
  • Output Frequencies: 5 MHz, 10 MHz & 100 MHz, fixed
  • Includes 5 MHz ULN OCXO and x2 to Create 10 MHz
  • Includes 100 MHz ULN OCXO
  • Standard 19" Rack Mount Chassis (2U)
  • Phase Locks to External 5 or 10 MHz Reference
  • SMA(f) Connectors, Rear Panel (3 per frequency)
  • Sine, +13 dBm, Standard, each output
  • Excellent Spectral Purity
  • 115 VAC or 240 VAC 50/60 Hz, selectable
General Purpose Standard
System Frequency Source
Low Noise Signal Distribution
5 MHz, -174 dBc/Hz
10 MHz, -169 dBc/Hz
100 MHz, -174 dBc/Hz
Std 19" Rack Mount 2U, 17" Depth
Model Description Application Phase Noise (100 kHz) Size
Wizard
501-10304
  • Low Phase Noise PL Frequency Source
  • Output Frequencies: 5 MHz, 10 MHz & 100 MHz, fixed
  • Includes 5 MHz, 10 MHz & 100 MHz OCXOs
  • Standard 19" Rack Mount Chassis (2U)
  • Phase Locks to External 5 or 10 MHz Reference
  • SMA(f) Connectors, Rear Panel (3 per frequency)
  • Sine, +13 dBm, Standard, each output
  • Excellent Spectral Purity
  • 115 VAC or 240 VAC 50/60 Hz, selectable
General Purpose Standard
System Frequency Source
Low Noise Signal Distribution
5 MHz, -174 dBc/Hz
10 MHz, -174 dBc/Hz
100 MHz, -174 dBc/Hz
Std 19" Rack Mount 2U, 17" Depth
Model Description Application Phase Noise (100 kHz) Size
Inst 27896
501-27896

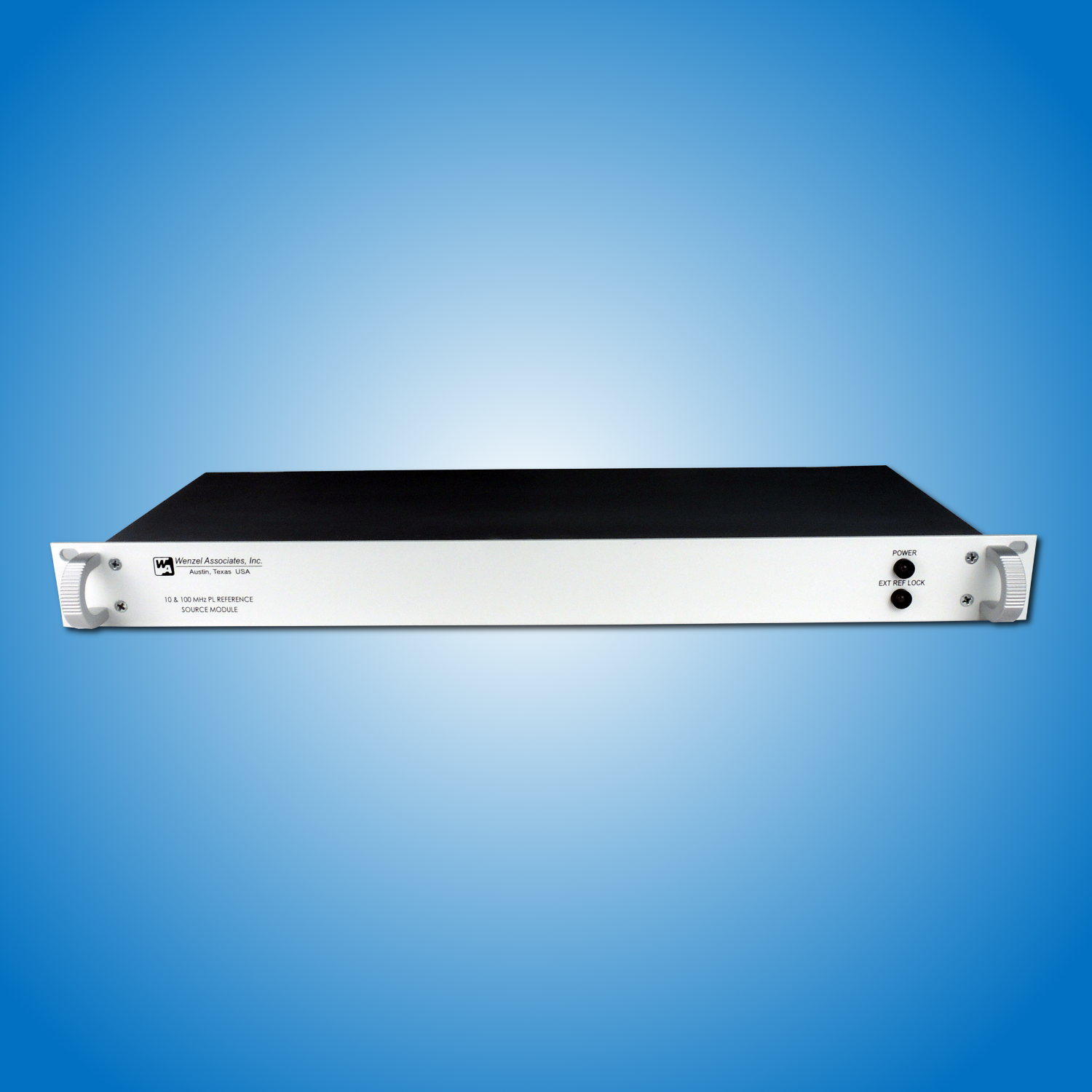

  • 100 MHz PLO Reference Oscillator Assembly
  • Output Frequency: (8) 100 MHz, fixed
  • Includes 100 MHz Vibration Isolated PLO
  • Designed for Operation in Dynamic Environments
  • Standard 19" Rack Mount Chassis (1U)
  • Phase Locks to External 10 MHz Reference
  • SMA(f) Connectors, Rear Panel
  • Sine, +17 dBm min., Standard, each output
  • Excellent Spectral Purity
  • Supply Voltage: +28 VDC
Airborne Signal Distribution
System Synchronization
-170 dBc/Hz Std 19" Rack Mount 1U, 8" Depth
