Multiplied Crystal Oscillator Series (MXO)

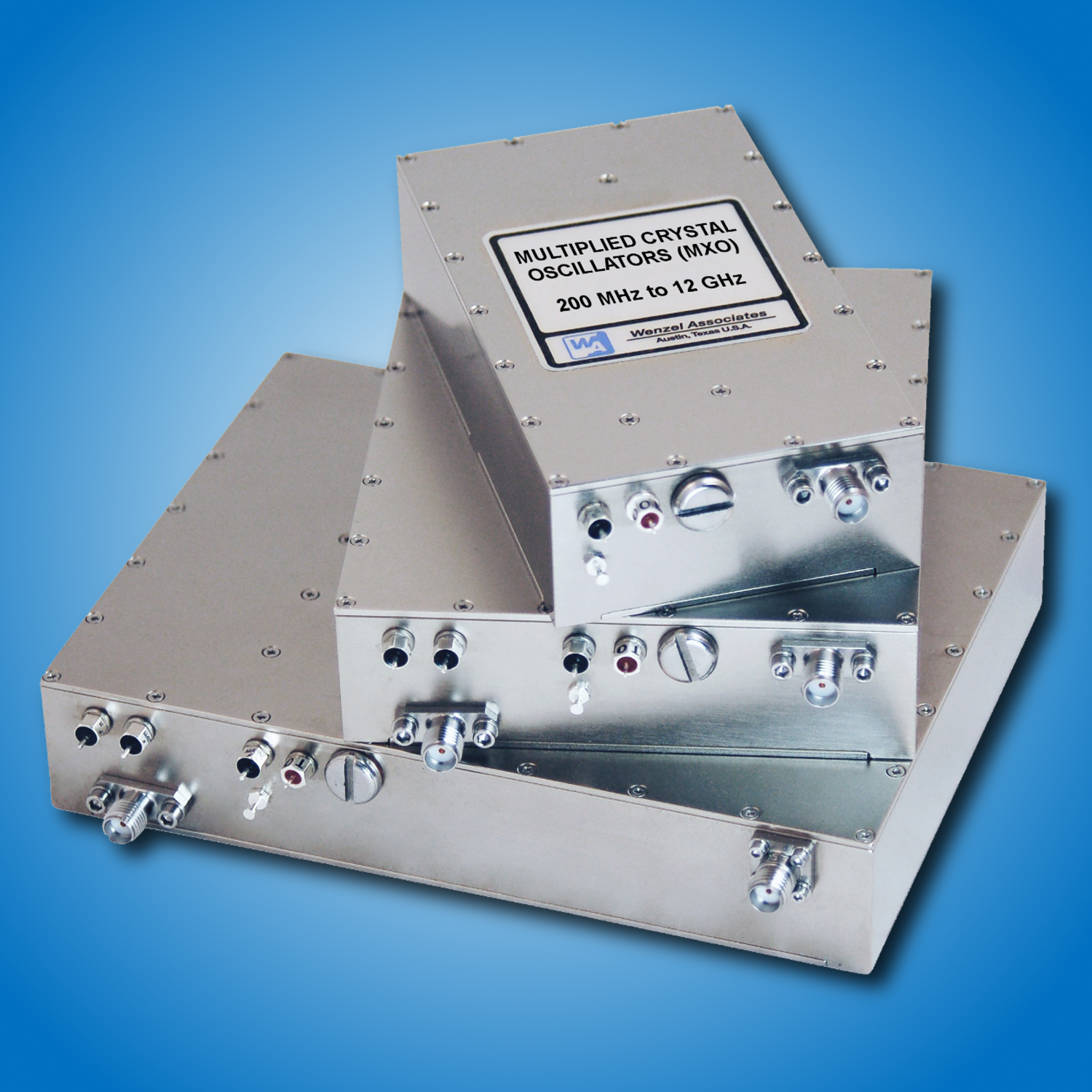

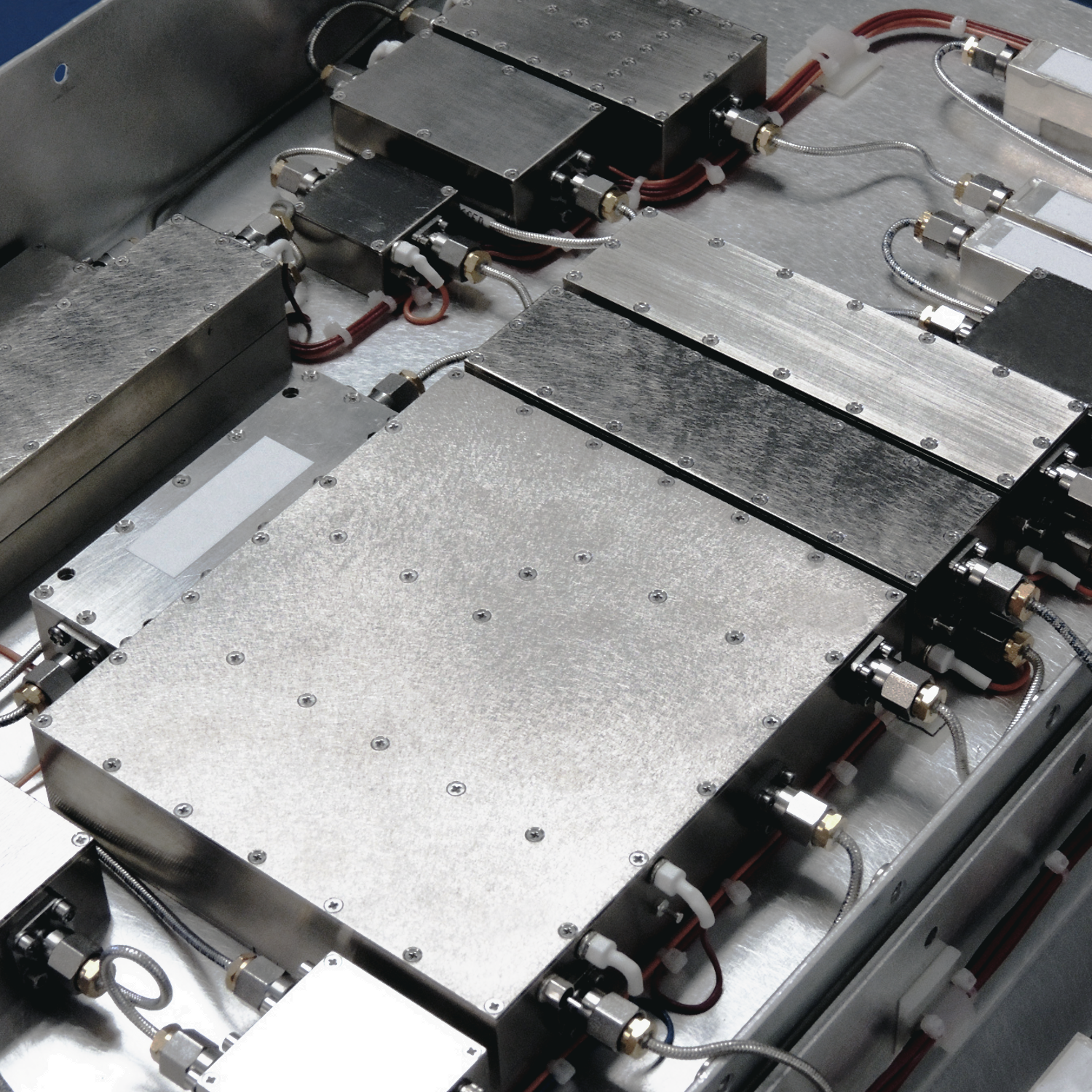

The typical Multiplied Crystal Oscillator (MXO) is comprised of Wenzel’s industry leading VHF Ultra Low Noise OCXO integrated with several low noise multiplier stages. The MXO is easily customized to any fixed frequency between 200 MHz and 12 GHz. Options such as phase locking (PLL) can also be specified on some models to phase lock to an external reference such as a rubidium, cesium, GPS or OCXO standard. An internal HF reference OCXO can be specified as well. The Golden Multiplied Crystal Oscillator Series (GMXO) offers the same options as the MXO Series oscillators, but provides superior phase noise performance. Our latest ultra-low noise oscillator technology and special multiplier stages are combined in the Golden Series products to allow a phase noise floor improvement of up to 10 dB lower than the already low MXO Series phase noise performance. Excellent option when stability and the lowest possible phase noise performance in an OCXO based product is a must.

Model Description Application Phase Noise (100 kHz) Size
MXO-FR (J2)_bg

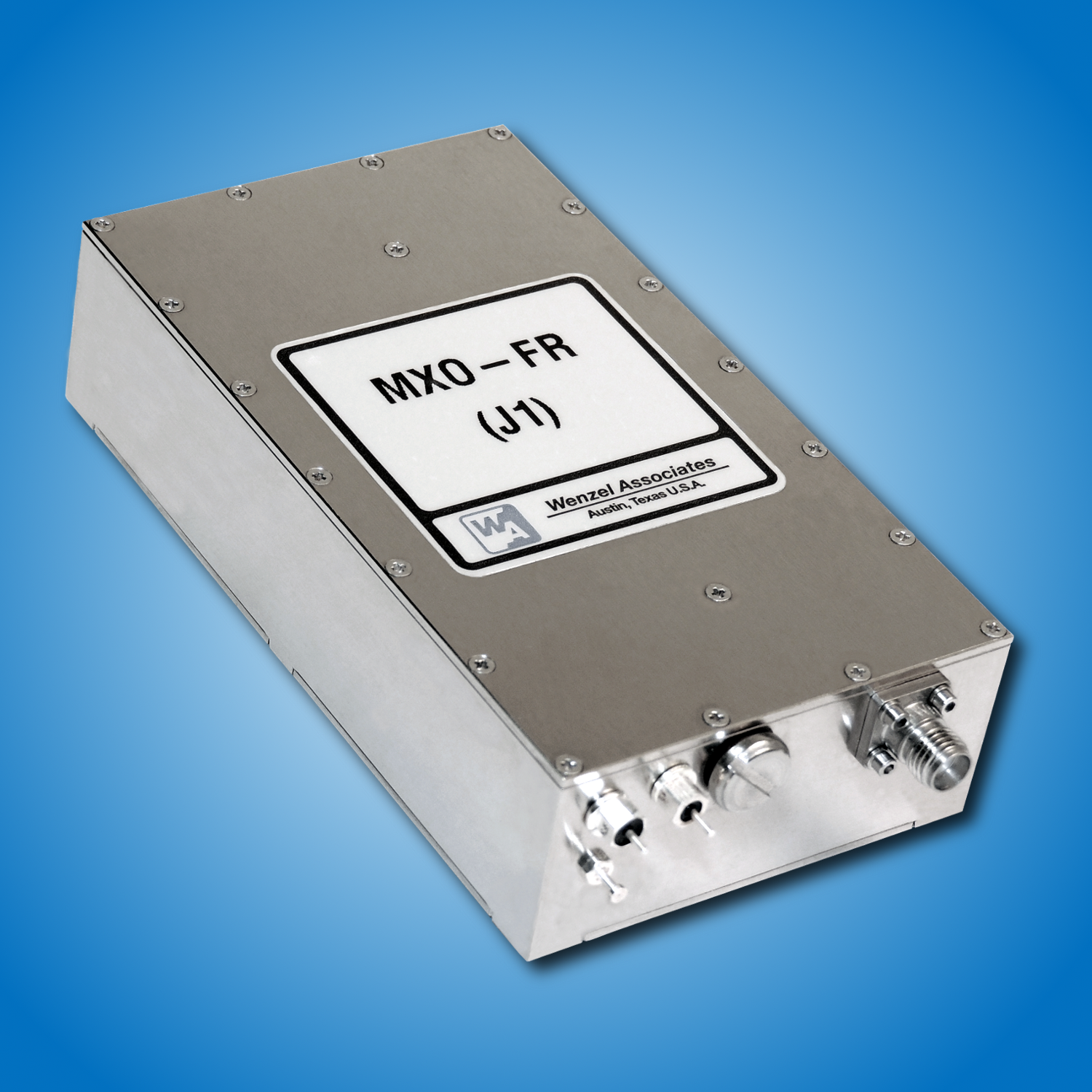

MXO-FR
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Ultra Low Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
Radar Systems
Instruments
Test Equipment
Reference Oscillator
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-160 dBc/Hz (500 MHz)
-154 dBc/Hz (1 GHz)
-149 dBc/Hz (1.28 GHz)
-132 dBc/Hz (10 GHz)
2.25 x 4 x 1"
3.21 x 4 x 1"
4.16 x 4 x 1"
Model Description Application Phase Noise (100 kHz) Size
MXO-PLD (J2P)_bg

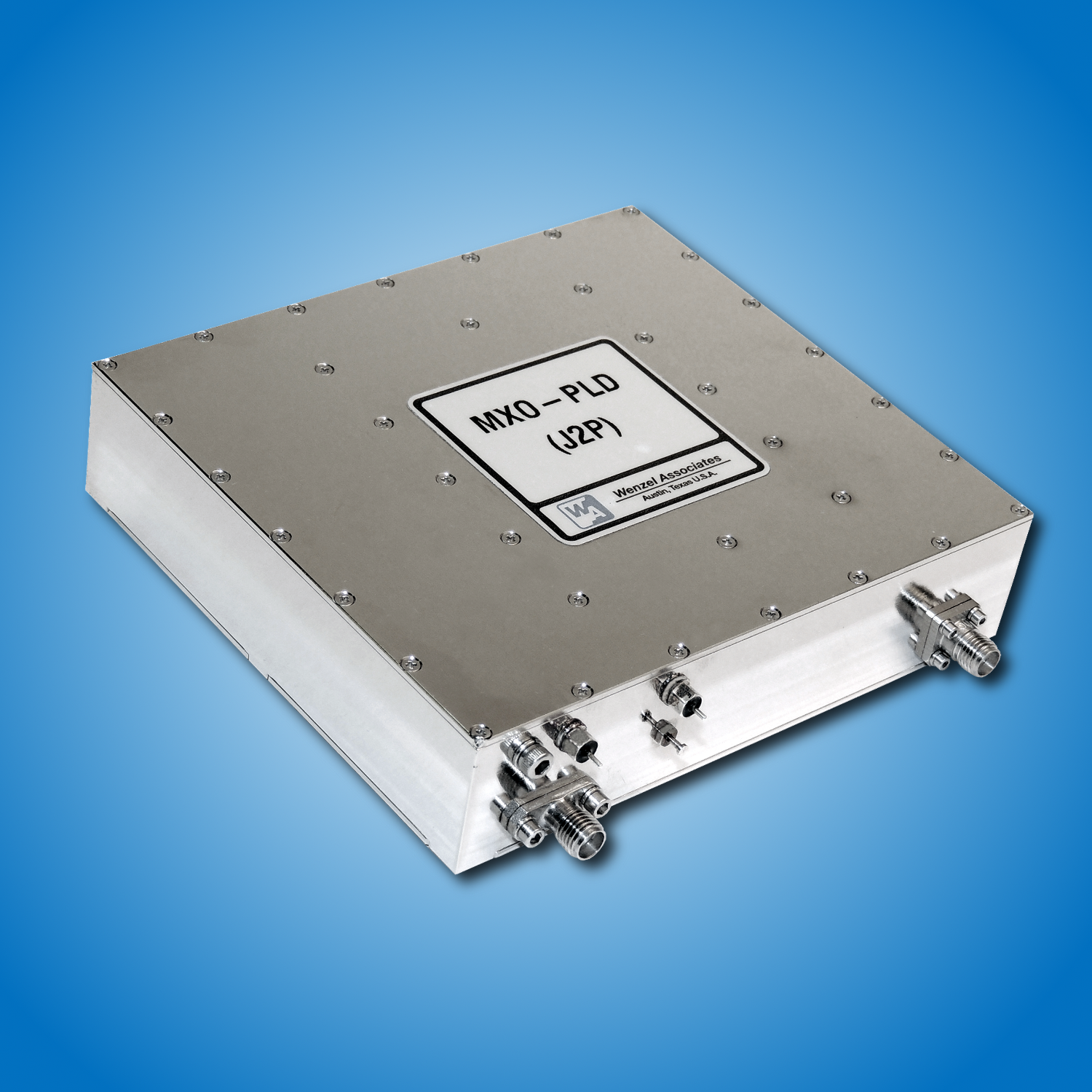

MXO-PLD
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Ultra Low Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
  • Automatic Input Detection
  • Ext Ref and Int Osc Divided Down to a Common Frequency
  • LBW: ≤ 10 Hz, typical
  • Low G-Sensitivity
Radar Systems
Instruments
Test Equipment
Reference Oscillator
200 MHz (100 MHz x2)
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-168 dBc/Hz (200 MHz)
-160 dBc/Hz (500 MHz)
-154 dBc/Hz (1 GHz)
-149 dBc/Hz (1.28 GHz)
-132 dBc/Hz (10 GHz)
3.45 x 4 x 1"
4.40 x 4 x 1"
5.36 x 4 x 1"
Model Description Application Phase Noise (100 kHz) Size
MXO-PLM (J2PM)_bg
MXO-PLM
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Ultra Low Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
  • Automatic Input Detection
  • Best Option for Consistent Phase Coherence with Ext Ref
  • Ext Ref Multiplied Up to Lock at Int Osc Frequency
  • LBW: 200 Hz to 300 Hz, typ (Optimized for Best Performance)
  • Low G-Sensitivity
Radar Systems
Instruments
Test Equipment
Reference Oscillator
Phase Coherent Systems
200 MHz (100 MHz x2)
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-168 dBc/Hz (200 MHz)
-160 dBc/Hz (500 MHz)
-154 dBc/Hz (1 GHz)
-149 dBc/Hz (1.28 GHz)
-132 dBc/Hz (10 GHz)
4.40 x 4 x 1"
5.36 x 4 x 1"
6.31 x 4 x 1"
Model Description Application Phase Noise (100 kHz) Size
MXO-PLMX (J3PMX)_bg
MXO-PLMX
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Ultra Low Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
  • Includes Internal 10 MHz ULN OCXO Reference (Output Provided)
  • Improved Close-In Phase Noise
  • Excellent Aging and Temperature Stability
Radar Systems
Instruments
Test Equipment
Reference Oscillator
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-160 dBc/Hz (500 MHz)
-154 dBc/Hz (1 GHz)
-149 dBc/Hz (1.28 GHz)
-132 dBc/Hz (10 GHz)
-175 dBc/Hz (10 MHz Ref Output)**
** Included With All Models
5.56 x 4 x 1"
6.51 x 4 x 1"
7.46 x 4 x 1"
Model Description Application Phase Noise (100 kHz) Size
GMXO-FR (G1)_bg
GMXO-FR
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Golden Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
Radar Systems
Instruments
Test Equipment
Reference Oscillator
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-170 dBc/Hz (500 MHz)
-164 dBc/Hz (1 GHz)
-159 dBc/Hz (1.28 GHz)
-142 dBc/Hz (10 GHz)
3.25 x 4 x 1"
4.21 x 4 x 1"
5.16 x 4 x 1"
Model Description Application Phase Noise (100 kHz) Size
GMXO-PLD (G1P)_bg

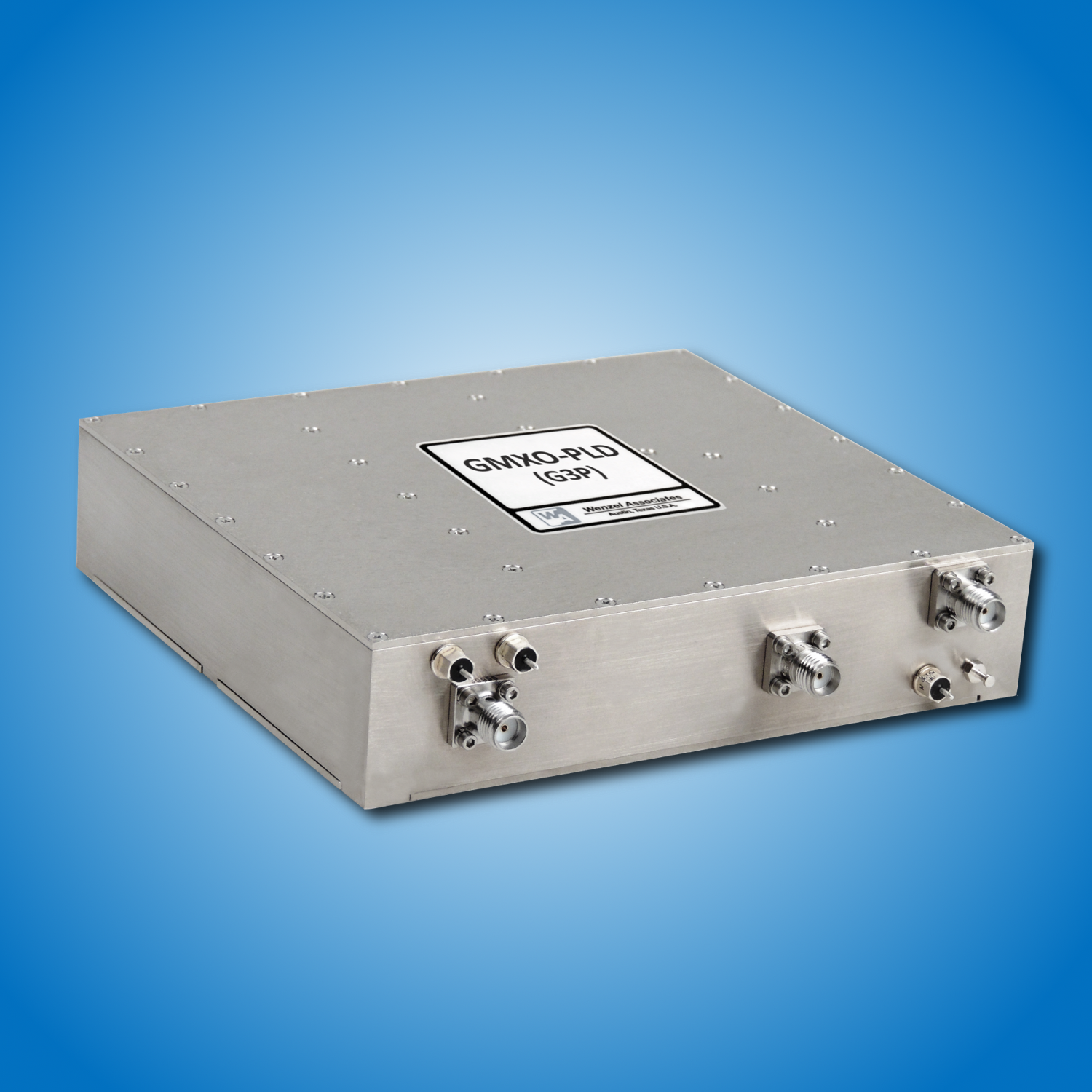

GMXO-PLD
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Golden Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
  • Automatic Input Detection
  • Ext Ref and Int Osc Divided Down to a Common Frequency
  • LBW: ≤ 10 Hz, typical
  • Low G-Sensitivity
Radar Systems
Instruments
Test Equipment
Reference Oscillator
200 MHz (100 MHz x2)
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-175 dBc/Hz (200 MHz)
-170 dBc/Hz (500 MHz)
-163 dBc/Hz (1 GHz)
-156 dBc/Hz (1.28 GHz)
-140 dBc/Hz (10 GHz)
4.45 x 4 x 1"
5.40 x 4 x 1"
6.36 x 4 x 1"
Model Description Application Phase Noise (100 kHz) Size
GMXO-PLM (G1PM)_bg
GMXO-PLM
  • Frequencies from 200 MHz to 12 GHz, fixed
  • Golden Phase Noise
  • Includes Integrated Multipliers, Filters and Amps
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
  • Multiple Frequency Outputs Optional
  • Automatic Input Detection
  • Best Option for Consistent Phase Coherence with Ext Ref
  • Ext Ref Multiplied Up to Lock at Int Osc Frequency
  • LBW: 200 Hz to 300 Hz, typ (Optimized for Best Performance)
  • Low G-Sensitivity
Radar Systems
Instruments
Test Equipment
Reference Oscillator
Phase Coherent Systems
200 MHz (100 MHz x2)
500 MHz (100 MHz x5)
1 GHz (100 MHz x 10)
1.28 GHz (80 MHz x 16)
10 GHz (100 MHz x 100)

-175 dBc/Hz (200 MHz)
-170 dBc/Hz (500 MHz)
-163 dBc/Hz (1 GHz)
-156 dBc/Hz (1.28 GHz)
-140 dBc/Hz (10 GHz)
5.40 x 4 x 1"
6.36 x 4 x 1"
7.31 x 4 x 1"
