Citrine Series Crystal Oscillators

The Citrine Series Crystal Oscillators were developed specifically to provide a broad product offering for the most demanding applications requiring low phase noise performance in both static and dynamic conditions. The Citrine Oscillators can be configured at any fixed frequency between 1 MHz and 700 MHz. Both HF and VHF oscillators are available with and without a vibration isolation system. And, both the HF and VHF Citrines are available in the “PLUS” series, which adds multipliers, dividers, amplifiers, filters and dual outputs, when the application demands something extra. Phase noise floor performance for both HF and VHF frequency ranges can be specified for the oscillator as Standard at -165 dBc/Hz or Premium at -176 dBc/Hz, at a fixed frequency within the range. The Golden Citrine option is available within the VHF frequency range, which offers typical phase noise performance to -183 dBc/Hz at the 10 kHz offset and -190 dBc/Hz at and beyond the 100 kHz offset. The Citrine Series product line offers a wide variety of standard oscillators that provide extremely high performance in high vibration and benign environments. Low phase noise, high stability and customized outputs are available on a standard COTS parts delivery schedule.

Model Description Application Phase Noise (100 kHz) Size

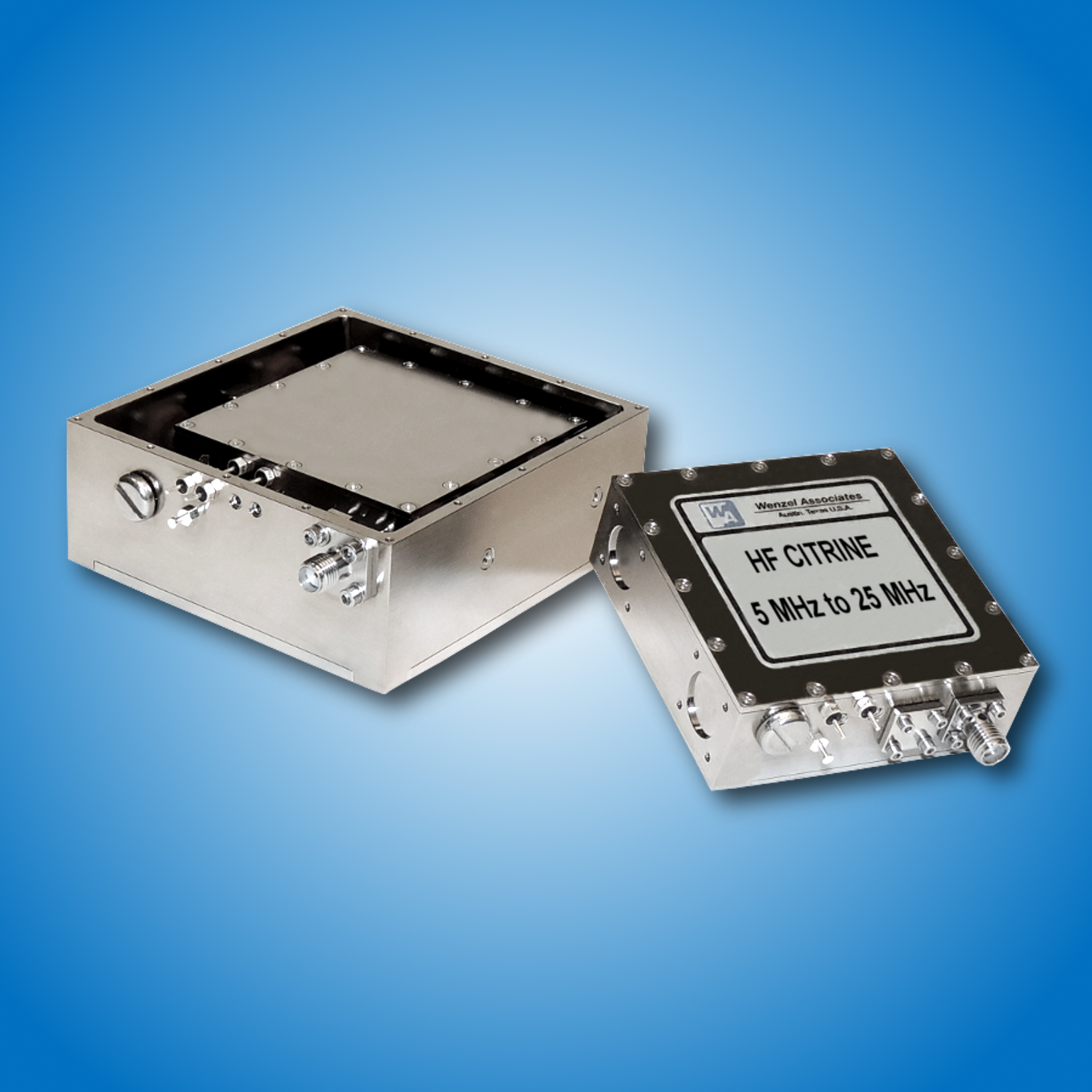

HF Citrine_bg
HF Citrine
  • Frequencies from 10 MHz to 25 MHz, fixed
  • Standard and Premium Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard
  • Dual Output Option
  • Low G-Sensitivity to 1E-10/g per axis
  • Excellent Temperature Stability
  • Low Aging rate
  • Vibration Isolated Version Available
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
-165 dBc/Hz (Standard)
-174 dBc/Hz (Premium)
2.25 x 2.25 x 0.8"
Model Description Application Phase Noise (100 kHz) Size

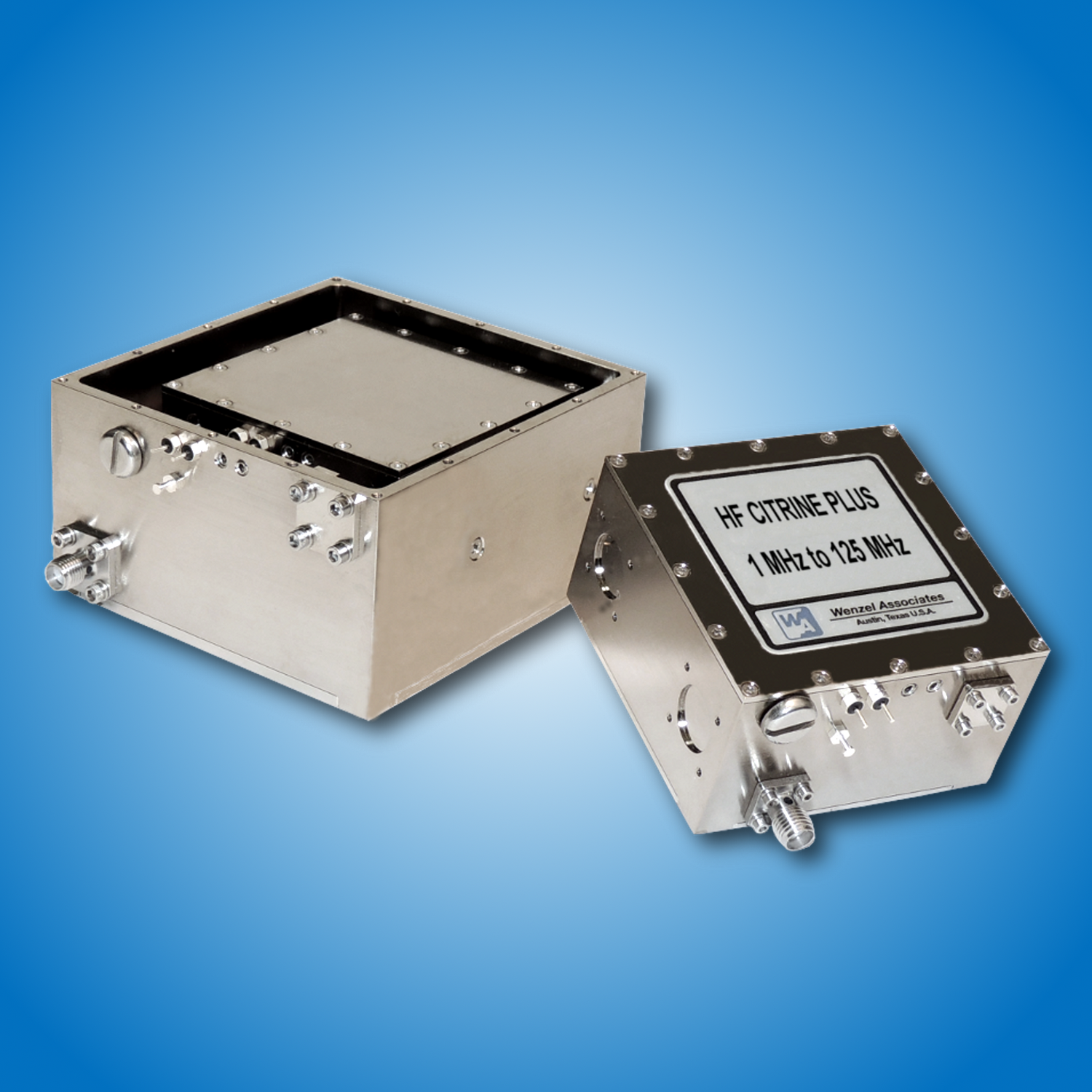

HF Citrine Plus_bg
HF Citrine Plus
  • Frequencies from 1 MHz to 125 MHz, fixed
  • Standard and Premium Phase Noise Options
  • HF OCXO (5 MHz to 25 MHz) Plus an Additional Circuit
  • Option to add Multiplier, Divider, Filter, PLL or Amplifier
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integ Amplifier) Low G-Sensitivity to 1E-10/g per axis
  • Excellent Temperature Stability
  • Low Aging rate
  • Vibration Isolated Version Available
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
1 MHz (10 MHz divide by 10)
50 MHz (16.666666 MHz x 3)

-165 dBc/Hz (1 MHz Standard)
-168 dBc/Hz (1 MHz Premium)
-153 dBc/Hz (50 MHz Standard)
-163 dBc/Hz (50 MHz Premium)
2.25 x 2.25 x 1.3"
Model Description Application Phase Noise (100 kHz) Size
HF Citrine PLO_bg
HF Citrine PLO
  • Frequencies 5 MHz to 25 MHz, fixed
  • Standard and Premium Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Reference Voltage and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard
  • Automatic Input Detection
  • Low Loop Bandwidth: ≤ 1 Hz, typical
  • Low G-Sensitivity to 1E-10/g per axis
  • Excellent Temperature Stability, Free-Running
  • Low Aging Rate
  • Vibration Isolated Version Available
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
System Synchronization
-165 dBc/Hz (Standard)
-174 dBc/Hz (Premium)
2.25 x 2.25 x 1.3"
Model Description Application Phase Noise (100 kHz) Size
Vibration Isolated HF Citrine_bg
Vibration Isolated HF Citrine
  • Frequencies from 10 MHz to 25 MHz, fixed
  • Standard or Premium Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard
  • Dual Output Option
  • Low G-Sensitivity to 1E-10/g per axis
  • Excellent Temperature Stability
  • Low Aging Rate
  • Natural Mount Resonant Frequency (~50 Hz, typical)
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
-165 dBc/Hz (Standard)
-174 dBc/Hz (Premium)
3.25 x 3.05 x 1.25"
Model Description Application Phase Noise (100 kHz) Size
Vibration Isolated HF Citrine Plus_bg
Vibration Isolated HF Citrine Plus
  • Frequencies from 1 MHz to 125 MHz, fixed
  • Standard or Premium Phase Noise Options
  • HF OCXO (5 MHz to 25 MHz) Plus an Additional Circuit
  • Option to add Multiplier, Divider, Filter, PLL or Amplifier
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integ Amplifier)
  • Low G-Sensitivity to 1E-10/g per axis
  • Excellent Temperature Stability
  • Low Aging rate
  • Natural Mount Resonant Frequency (~35 Hz, typical)
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
1 MHz (10 MHz divide by 10)
50 MHz (16.666666 MHz x 3)

-165 dBc/Hz (1 MHz Standard)
-168 dBc/Hz (1 MHz Premium)
-153 dBc/Hz (50 MHz Standard)
-163 dBc/Hz (50 MHz Premium)
3.25 x 3.05 x 1.75"
Model Description Application Phase Noise (100 kHz) Size
Vibration Isolated HF Citrine PLO_bg
Vibration Isolated HF Citrine PLO
  • Frequencies 10 MHz to 25 MHz, fixed
  • Standard or Premium Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard
  • Automatic Input Detection
  • Low Loop Bandwidth: ≤ 1 Hz, typical
  • Low G-Sensitivity to 1E-10/g per axis
  • Excellent Temperature Stability, Free-Running
  • Low Aging rate
  • Natural Mount Resonant Frequency (~35 Hz, typical)
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
System Synchronization
-165 dBc/Hz (Standard)
-174 dBc/Hz (Premium)
3.25 x 3.05 x 1.75"
Model Description Application Phase Noise (100 kHz) Size

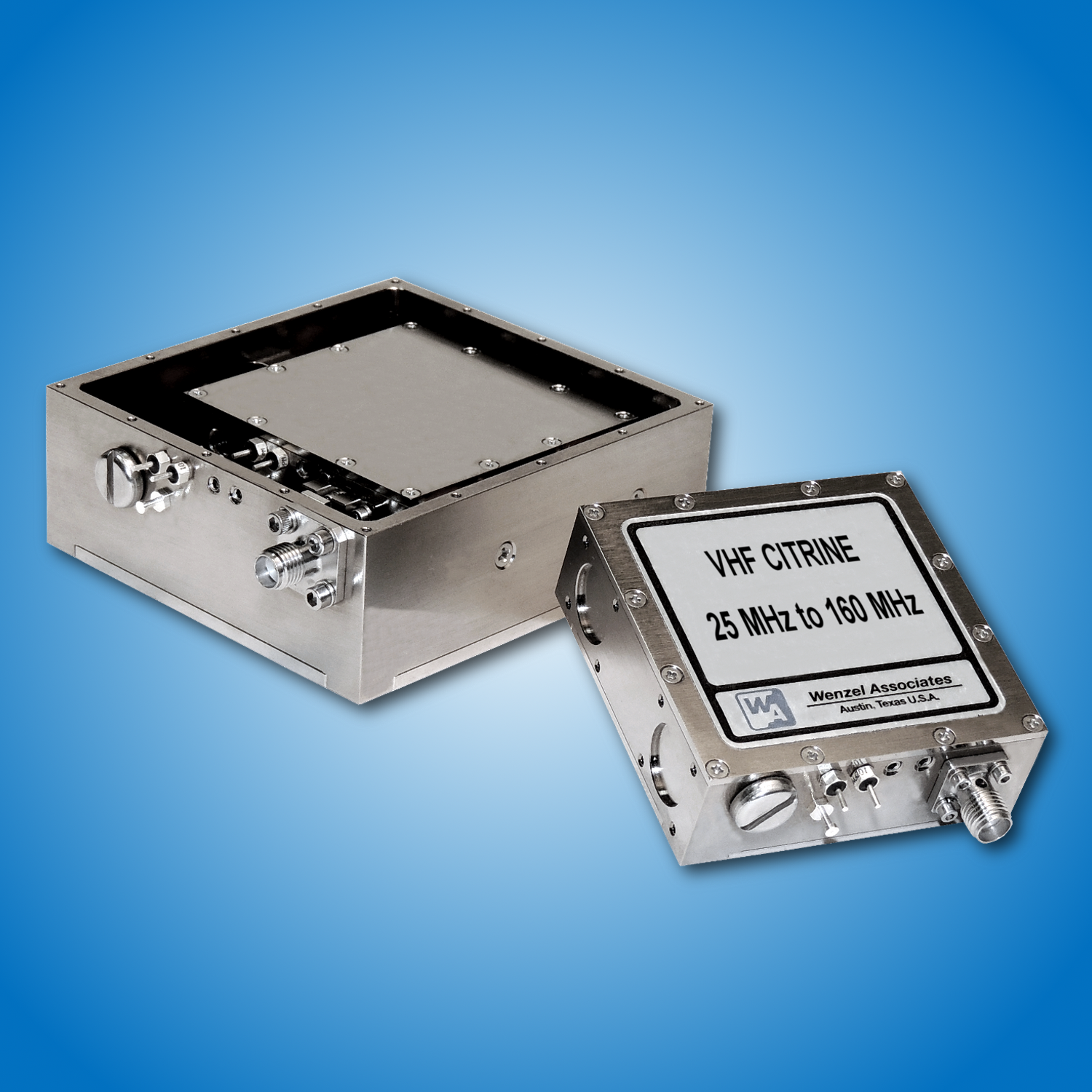

VHF Citrine_bg
VHF Citrine
  • Frequencies from 25 MHz to 160 MHz, fixed
  • Standard, Premium and Golden Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard; To +18 dBm, Optional
  • Low G-Sensitivity to 2E-10/g per axis
  • Dual Output Version Available
  • Vibration Isolated Version Available
Airborne
Radar Systems
Tacticle Radio
Vehicular Communication
-170 dBc/Hz (Standard)
-176 dBc/Hz (Premium)
-188 dBc/Hz (Golden)
2 x 2 x 0.7"
Model Description Application Phase Noise (100 kHz) Size
VHF Citrine Plus_bg
VHF Citrine Plus
  • Frequencies from 50 MHz to 700 MHz, fixed
  • Standard and Premium Phase Noise Options
  • VHF OCXO (25 MHz to 160 MHz) Plus an Additional Circuit
  • Option to add Multiplier, Divider, Filter, PLL or Amplifier
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integ Amplifier)
  • Low G-Sensitivity to 2E-10/g per axis
  • Vibration Isolated Version Available
Airborne
Radar Systems
Tacticle Radio
Vehicular Communication
200 MHz (100 MHz x 2)
500 MHz (100 MHz x 5)
650 MHz (130 MHz x 5)

-163 dBc/Hz (200 MHz, Standard)
-154 dBc/Hz (500 MHz, Standard)
-154 dBc/Hz (650 MHz, Standard)

-169 dBc/Hz (200 MHz, Premium)
-160 dBc/Hz (500 MHz, Premium)
-160 dBc/Hz (650 MHz, Premium)
2 x 2 x 1.3"
Model Description Application Phase Noise (100 kHz) Size
VHF Citrine PLO_bg
VHF Citrine PLO
  • Frequencies from 25 MHz to 160 MHz, fixed
  • Standard, Premium and Golden Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Reference Voltage and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard
  • Automatic Input Detection
  • LBW: 1 Hz to 100 Hz (Optimized for Best Performance)
  • Low G-Sensitivity to 2E-10/g per axis
  • Vibration Isolated Version Available
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
System Synchronization
Test Equipment
-170 dBc/Hz (Standard)
-176 dBc/Hz (Premium)
-188 dBc/Hz (Golden)
2 x 2 x 1.3"
Model Description Application Phase Noise (100 kHz) Size
Vibration Isolated VHF Citrine_bg
Vibration Isolated VHF Citrine
  • Frequencies from 25 MHz to 160 MHz, fixed
  • Standard, Premium or Golden Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard; To +18 dBm, Optional
  • Low G-Sensitivity to 2E-10/g per axis
  • Natural Mount Resonant Frequency (~50 Hz, typical)
Airborne
Radar Systems
Tacticle Radio
Vehicular Communication
-170 dBc/Hz (Standard)
-176 dBc/Hz (Premium)
-188 dBc/Hz (Golden)
3 x 2.8 x 1.15"
Model Description Application Phase Noise (100 kHz) Size
Vibration Isolated VHF Citrine Plus_bg
Vibration Isolated VHF Citrine Plus
  • Frequencies from 50 MHz to 700 MHz, fixed
  • Standard or Premium Phase Noise Options
  • VHF OCXO (25 MHz to 160 MHz) Plus an Additional Circuit
  • Option to Add Multiplier, Divider, Filter, PLL or Amplifier
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integrated Amp)
  • Low G-Sensitivity to 2E-10/g per axis
  • Natural Mount Resonant Frequency (~35 Hz, typical)
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
200 MHz (100 MHz x 2)
500 MHz (100 MHz x 5)
650 MHz (130 MHz x 5)

-163 dBc/Hz (200 MHz, Standard)
-154 dBc/Hz (500 MHz, Standard)
-154 dBc/Hz (650 MHz, Standard)

-169 dBc/Hz (200 MHz, Premium)
-160 dBc/Hz (500 MHz, Premium)
-160 dBc/Hz (650 MHz, Premium)
3 x 2.8 x 1.75"
Model Description Application Phase Noise (100 kHz) Size
Vibration Isolated VHF Citrine PLO_bg
Vibration Isolated VHF Citrine PLO
  • Frequencies from 25 MHz to 160 MHz, fixed
  • Standard, Premium or Golden Phase Noise Options
  • Ruggedized for Dynamic Environments
  • Nickel-Plated Machined Aluminum Case
  • SMA(f) and Solder Pins on Side
  • Optional Voltage Reference and Oven Monitor Pins
  • Output: Sine, +13 dBm, Standard
  • Automatic Input Detection
  • LBW: 1 Hz to 100 Hz (Optimized for Best Performance)
  • Low G-Sensitivity to 2E-10/g per axis
  • Natural Mount Resonant Frequency (~35 Hz, typical)
Airborne
Radar Systems
Tactical Radio
Vehicular Communication
System Synchronization
Test Equipment
-170 dBc/Hz (Standard)
-176 dBc/Hz (Premium)
-188 dBc/Hz (Golden)
3 x 2.8 x 1.75"
