Plate Assemblies

Wenzel Associates’ offers plate assemblies which are comprised of one or more industry leading Ultra Low Noise Ovenized Crystal oscillators, Blue Tops RF Modules and other hardware mounted on an aluminum plate, to provide a high performance frequency source with unparalleled phase noise performance at frequencies to 16 GHz. These plates are suitable for use as a bench top frequency standard or mounting within a larger assembly as part of a system. Custom plate assemblies are available with short development time and low cost.

Model Description Application Phase Noise (100 kHz) Size

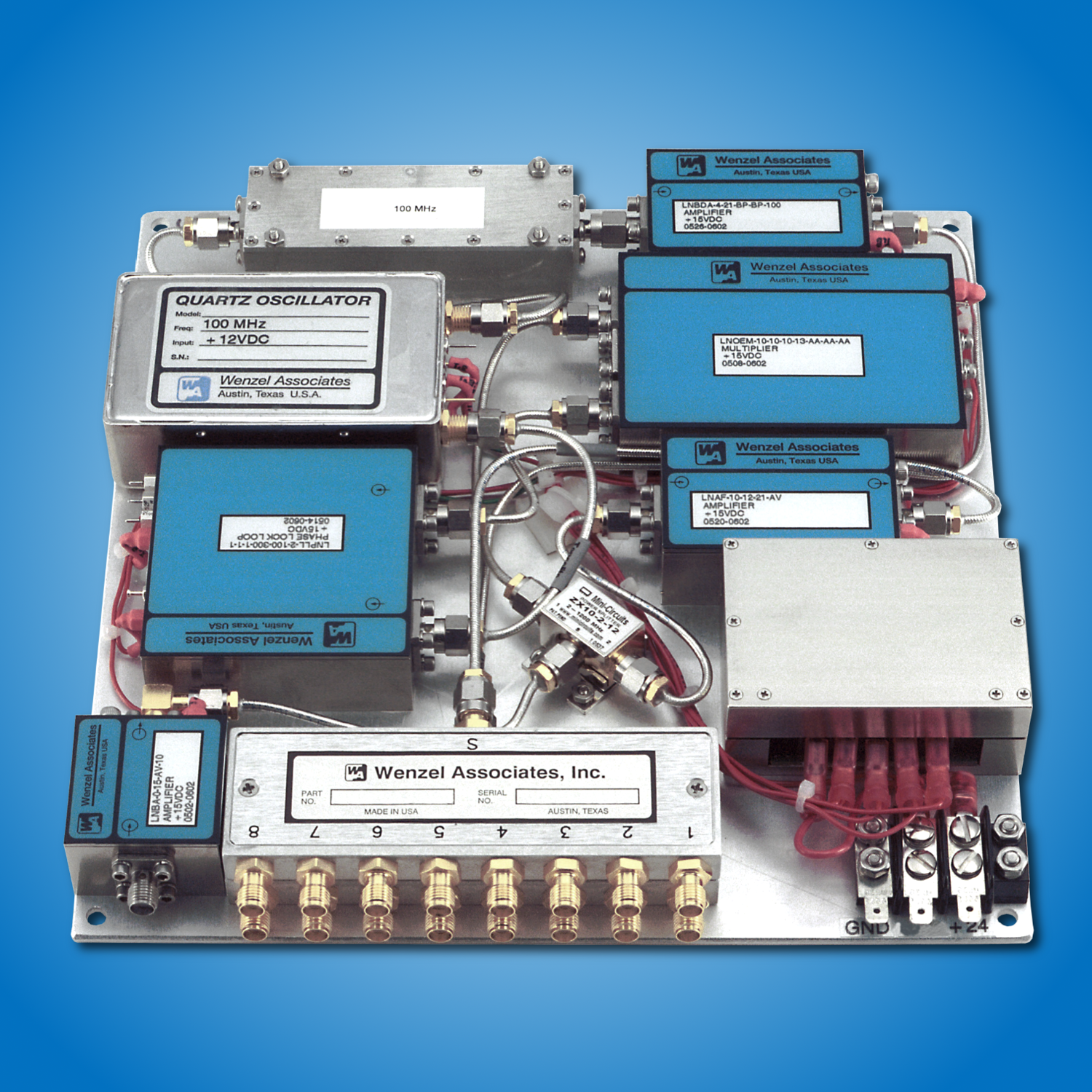

Plate 17387_bg
501-17387
  • 10 MHz and 100 MHz Frequency Source Plate
  • Ultra Low Phase Noise and Excellent Spectral Purity
  • OCXOs and RF Modules Mounted on an 8" x 7.85" Aluminum Plate
  • Provides (8) 10 MHz and (8) 100 MHz Outputs
  • SMA(f) Connectors
  • Sine, +10 dBm, each output
  • Includes Low Noise Voltage Regulator (+24 VDC Supply Voltage)
  • Phase Locks to External 10 MHz Reference When Present
Reference Signal Distribution
Test Equipment Synchronization
System Integration
10 MHz: -174 dBc/Hz
100 MHz: -174 dBc/Hz
8 x 7.85 x 1.25"
Model Description Application Phase Noise (100 kHz) Size

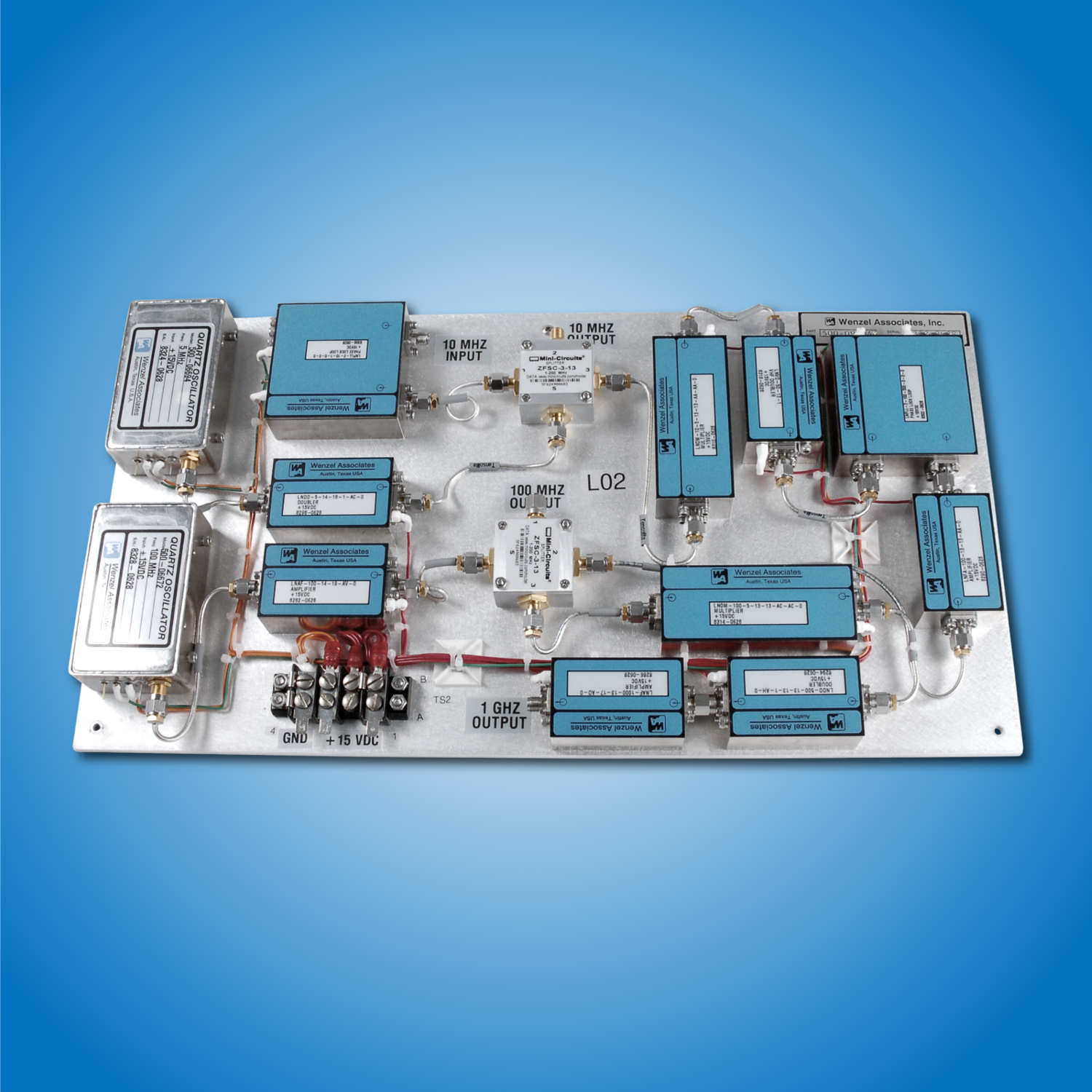

Plate 26725_bg
501-26725
  • 10 MHz, 100 MHz and 1 GHz Frequency Source Plate
  • Ultra Low Phase Noise and Excellent Spectral Purity
  • OCXOs and RF Modules Mounted on an 8" x 15" Aluminum Plate
  • SMA(f) Connectors Located on Final Module in String
  • Sine, +10 dBm, each output
  • Supply Voltage: +15 VDC ±5%
Bench Reference Signal Source
Radar Systems
System Integration
10 MHz: -171 dBc/Hz
100 MHz: -174 dBc/Hz
1 GHz: -153 dBc/Hz
8 x 15 x 3"
Model Description Application Phase Noise (100 kHz) Size

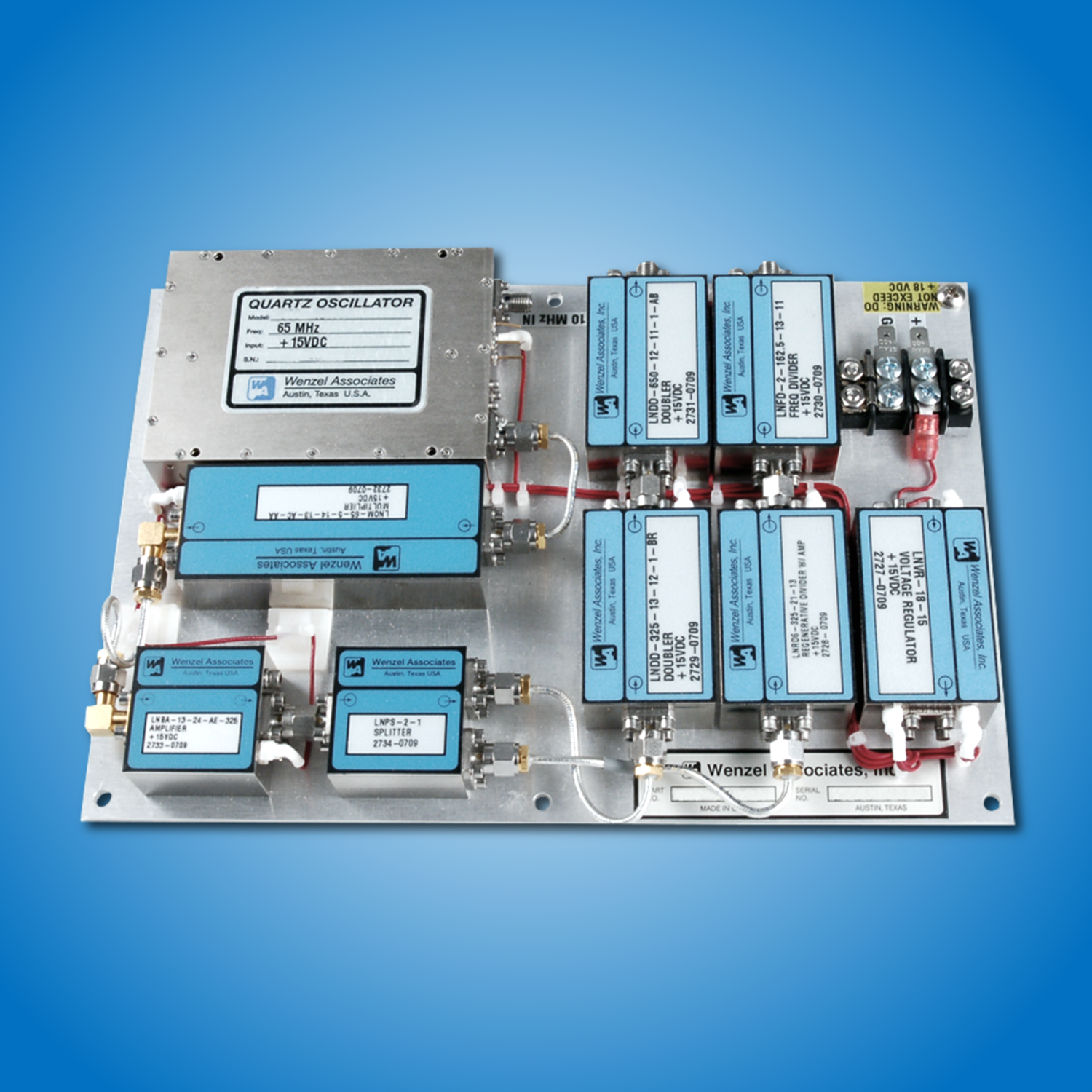

Plate 26726_bg
501-26726
  • 81.25 MHz and 1.3 GHz Master Oscillator Plate
  • Low Phase Noise and Excellent Spectral Purity
  • Both Signals Created from a Single 65 MHz ULN PLO
  • PLO and RF Modules Mounted on a 9" x 6" Aluminum Plate
  • SMA(f) Connectors
  • Sine, +10 dBm, each output
  • Includes Low Noise Voltage Regulators (+18 VDC Supply Voltage)
  • Phase Locks to External 10 MHz Reference When Present
Radar System
Communication System
System Integration
81.25 MHz: -168 dBc/Hz
1.3 GHz: -144 dBc/Hz
9 x 6 x 1.5"
Model Description Application Phase Noise (100 kHz) Size
Plate 26727_bg
501-26727
  • 119.75 MHz and 479 MHz Frequency Source Plate
  • Low Phase Noise and Excellent Spectral Purity
  • Both Signals Created from a 119.75 MHz Sprinter
  • OCXO and RF Modules Mounted on an 8" x 6" Aluminum Plate
  • SMA(f) Connectors
  • Sine, 119.75 MHz @ +19 dBm; Sine, 479 MHz @ +20 dBm
  • Includes Low Noise Voltage Regulator (+18 VDC Supply Voltage)
Radar System
Communication System
System Integration
119.75 MHz: -170 dBc/Hz
479 MHz: -157 dBc/Hz
8 x 6 x 1"
Model Description Application Phase Noise (100 kHz) Size
Plate 26733_bg
501-26733
  • 20, 40, 80, 160, 320, 640, 1280, 2560, 5120 and 10240 MHz PL Plate
  • Ultra Low Phase Noise and Excellent Spectral Purity
  • All Signals Created from a Single 80 MHz ULN PLO
  • PLO and RF Modules Mounted on a 12" x 18" Aluminum Plate
  • SMA(f) for Each Output Mounted on an L-Bracket
  • Sine, +13 dBm, each output
  • Includes Low Noise Voltage Regulators (+18 VDC Supply Voltage)
  • Phase Locks to External 10 MHz Reference (or optional onboard GPSDO)
Bench Reference Signal Source
Radar Systems
Intrument Reference
Communication System
System Integration
20 MHz: -165 dBc/Hz
40 MHz: -165 dBc/Hz
80 MHz: -174 dBc/Hz
160 MHz: -166 dBc/Hz
320 MHz: -160 dBc/Hz
640 MHz: -154 dBc/Hz
1280 MHz: -147 dBc/Hz
2560 MHz: -141 dBc/Hz
5120 MHz: -134 dBc/Hz
10240 MHz: -128 dBc/Hz
12 x 18 x 1.25"
Model Description Application Phase Noise (100 kHz) Size

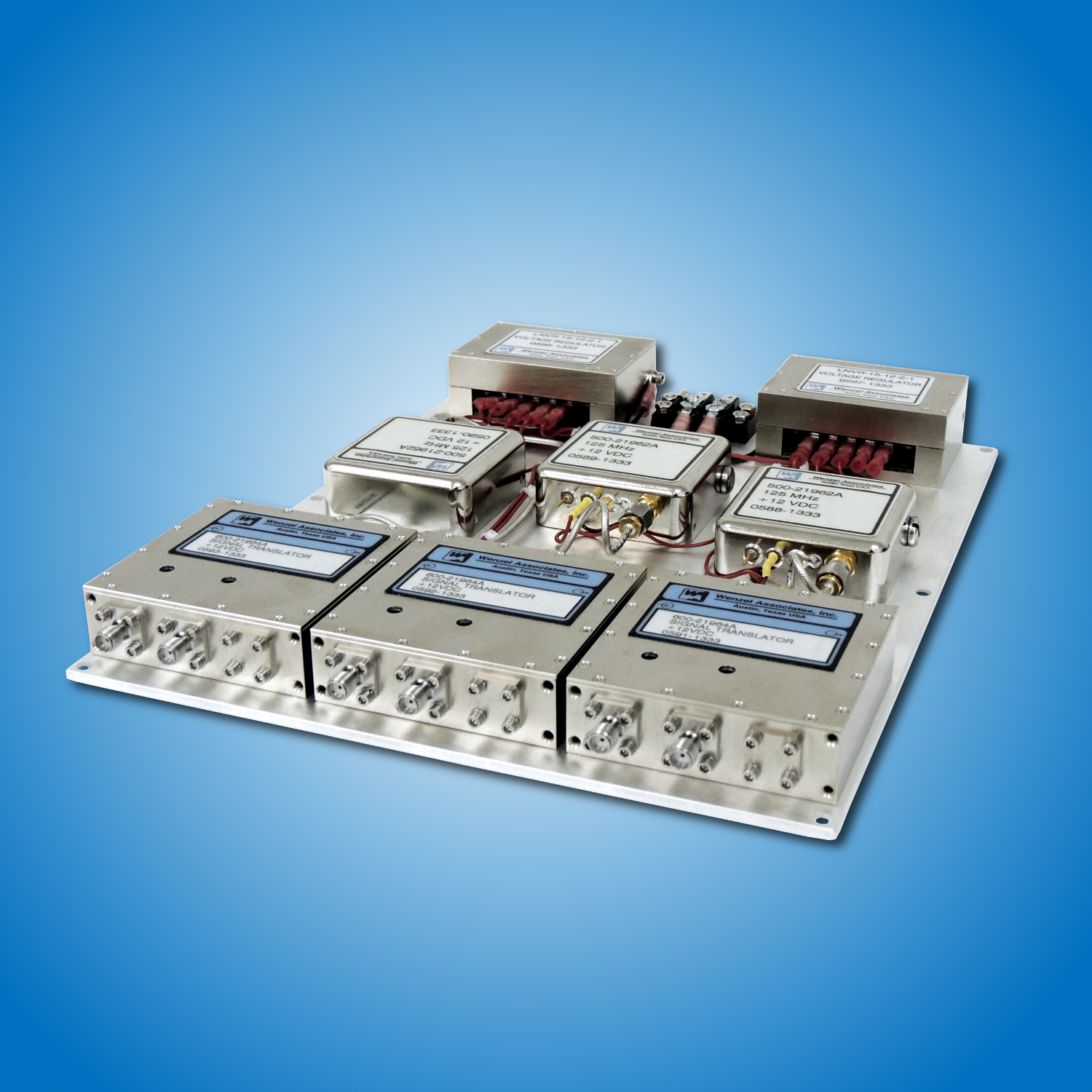

Plate 27900_bg
501-27900
  • 125 MHz Three Oscillator Clock Signal Plate
  • Three Separate 125 MHz Sprinter Oscillators
  • Dual Square Wave Outputs per Oscillator (180 degrees out of phase)
  • Each Square Wave Adjustable from 0.5 to 1 VDC
  • Low Phase Noise
  • OCXO and RF Modules Mounted on an 8" x 10" Aluminum Plate
  • SMA(f) Connectors
  • Includes Low Noise Voltage Regulators (+18 VDC Supply Voltage)
A/D Clock Signals
Communication System
System Integration
125 MHz, -150 dBc/Hz, goal 8 x 10 x 1.5"
