RF Modules

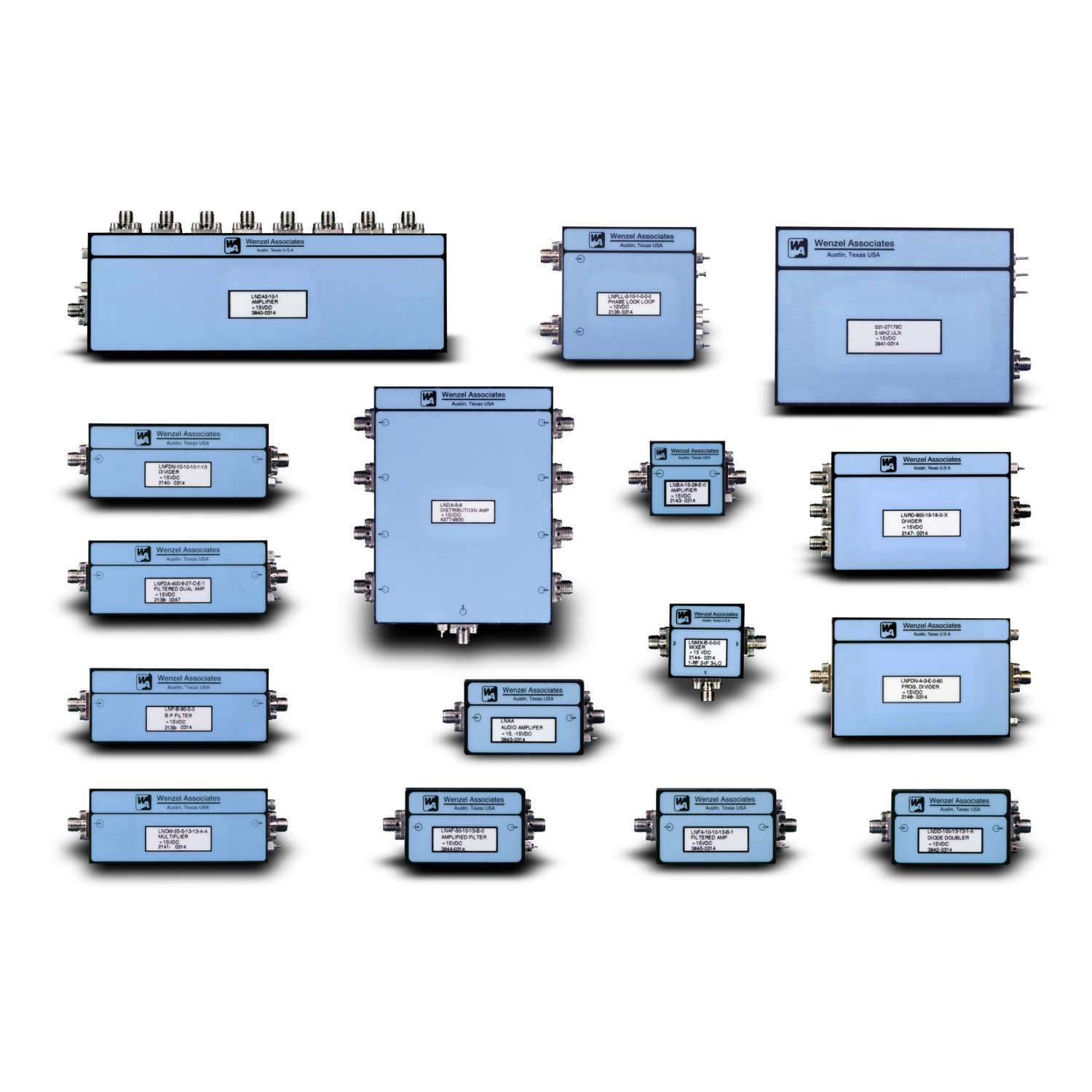

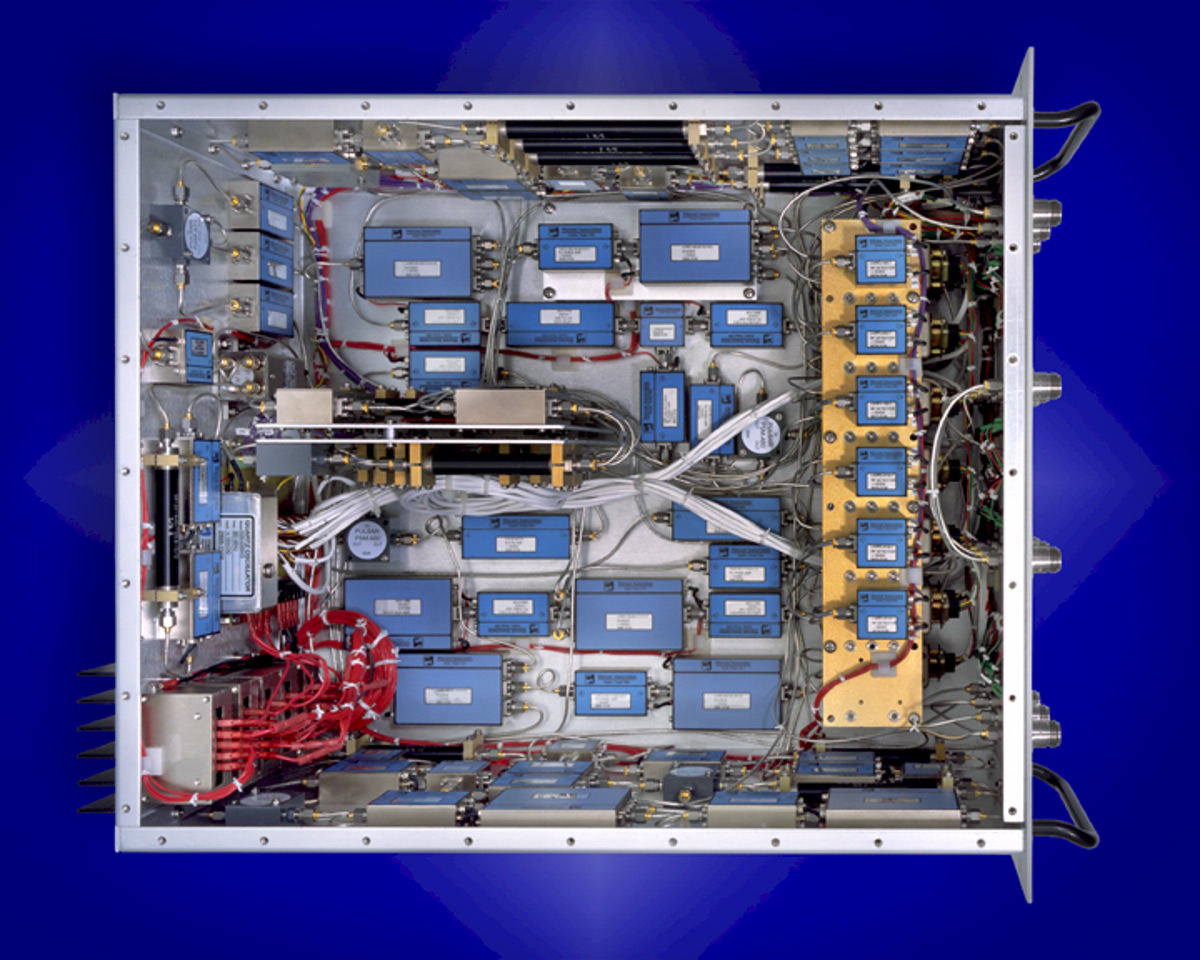

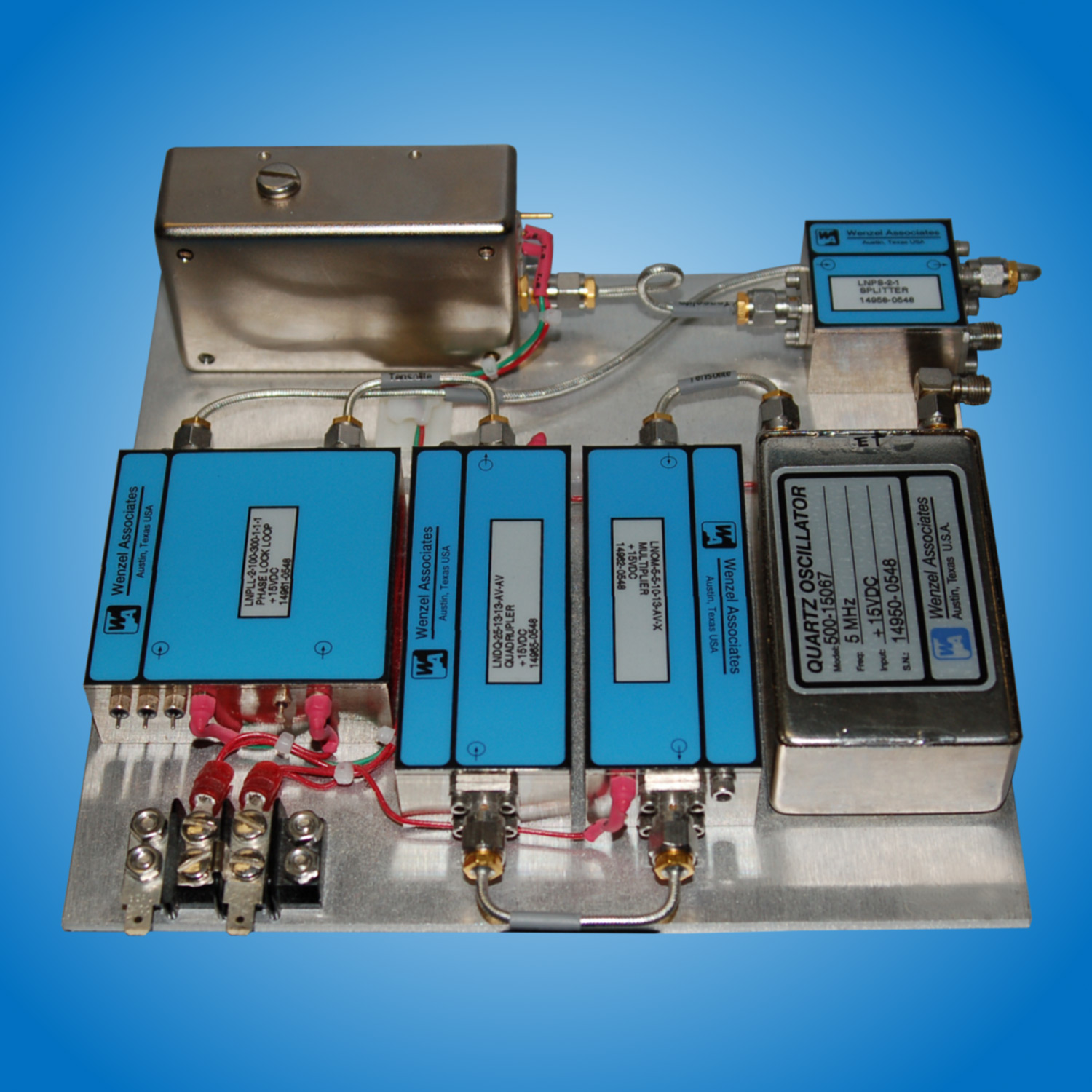

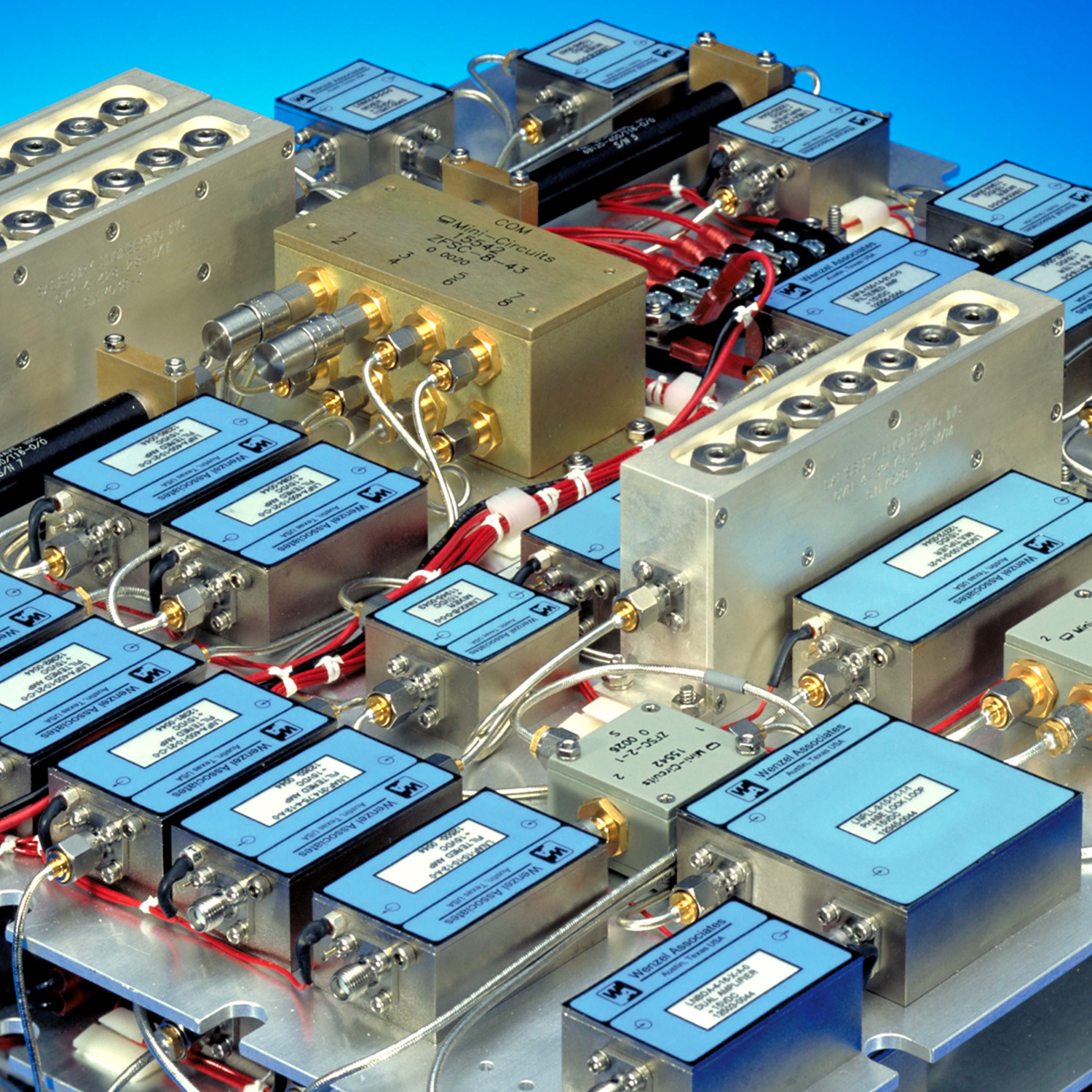

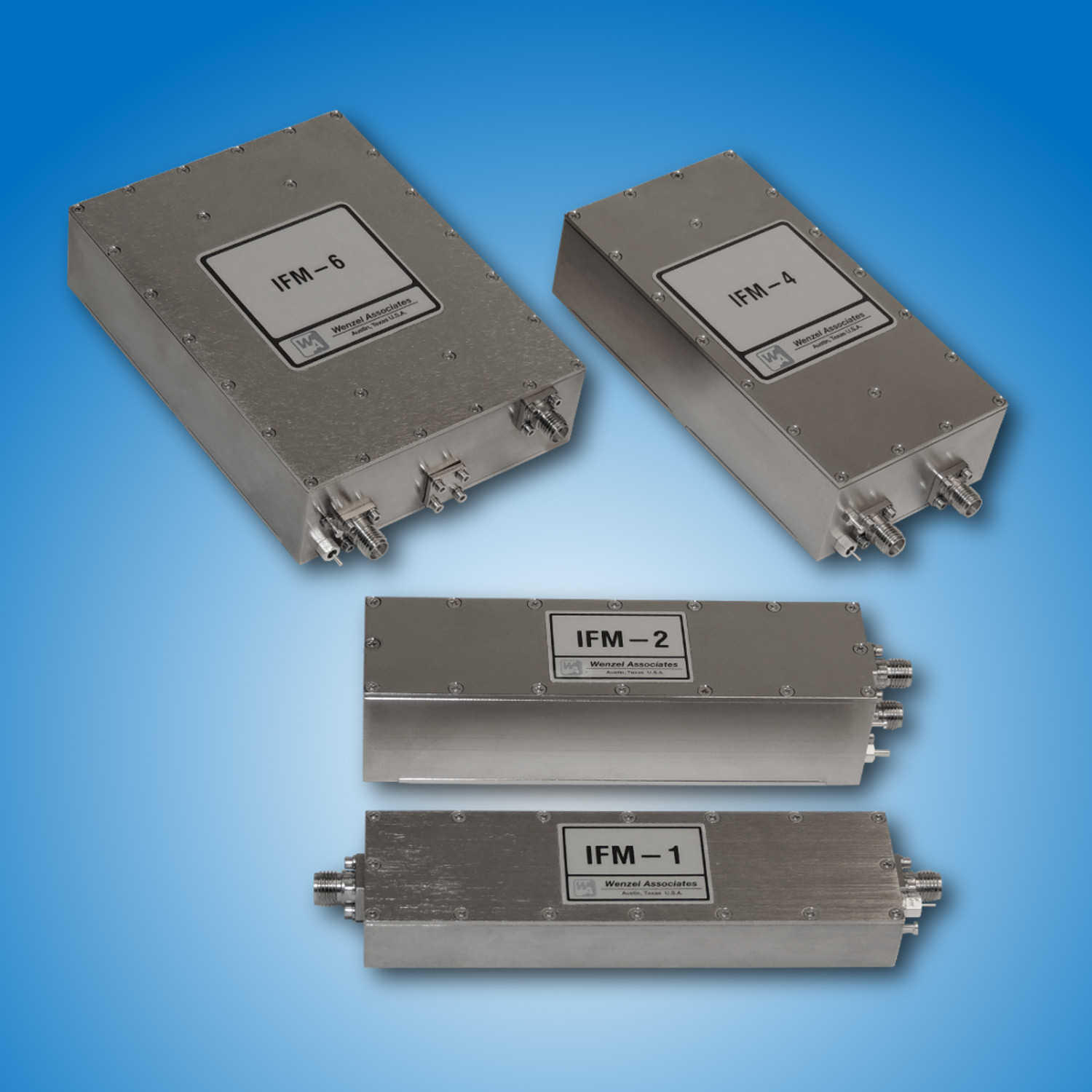

Wenzel Associates’ Blue Tops RF Modules are RF system building blocks with verified state-of-the-art phase noise performance and exceptionally low harmonic and spurious content. These modules enable RF systems designers to quickly configure frequency generating systems with low noise outputs to 16 GHz. Each module contains all the components required to achieve a given function integrated into a single, compact aluminum case. The Blue Tops Series includes amplifier, multiplier, divider and phase lock loop modules, mixers, filters, splitters and power level detectors, most with fast deliveries and low cost.
Model Description Block Diagram Size
LNAA
Audio Amplifier (LNAA)
  • Low Noise Audio Amplifier
  • For Low Phase Noise Measurements
  • Bandwidth: 10 Hz to 1 MHz
  • Fixed Gain from 30 to 60 dB
  • Gain Flatness: ±1 dB
  • Voltage Noise: <1 nV/root-Hz
  • Low Output Impedance
  • 50 Ohm or High Input Impedance
  • +15 VDC and -15 VDC Supply Voltages, Required
  • Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNAA block 3 x 1.25 x 0.8"
Model Description Block Diagram Size
LNAF
Amplifier Filter (LNAF)
  • Low Noise Amplifier Filter
  • RF Signal Amplification and Harmonic Suppression
  • Input Frequency from 5 MHz to 2 GHz
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral 5-Section Lowpass Filter: Harmonics: ≤ -50 dBc
  • Integral Attenuators for Flexibility and Customized Options
  • Gain: Up to +22 dB on some models
  • Output Level P1dB: Up to +26 dBm on some models
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNAF block 2 x 1.25 x 0.8"
Model Description Block Diagram Size
LNBA
Broadband Amplifier (LNBA)
  • Low Noise Broadband Amplifier
  • Input Frequency from DC to 2 GHz
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Attenuators for Flexibility and Customized Options
  • Gain: Up to +25 dB on some models
  • Output Level P1dB: Up to +26 dBm on some models
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNBA block 1.25 x 1.25 x 0.8"
Model Description Block Diagram Size
LNBA2
Broadband Amplifier (LNBA2)
  • Low Noise Broadband Amplifier 2
  • Input Frequency from DC to 12 GHz
  • Intrinsic Phase Noise Floor to -170 dBc/Hz (Input Referred)
  • Integral Attenuators for Flexibility and Customized Options
  • Gain: Up to +18 dB on some models
  • Output Level P1dB: Up to +20 dBm on some models
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNBA2 block 1 x 1 x 0.55"
Model Description Block Diagram Size
LNBDA
Broadband Dual Amplifier (LNBDA)
  • Low Noise Broadband Dual Amplifier
  • Input Frequency from DC to 2 GHz
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Attenuators for Flexibility and Customized Options
  • Gain: Up to +48 dB on some models
  • Output Level P1dB: Up to +26 dBm on some models
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNBDA block 2 x 1.25 x 0.8"
Model Description Block Diagram Size
LNDA-3
Distribution Amplifier (LNDA-3)
  • Low Noise Distribution Amplifier (3-Way)
  • Formerly Known as LNDA3
  • Low Phase Noise Frequency Distribution
  • 5 MHz and 10 MHz Models Available
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Low Noise Voltage Regulator
  • Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
  • Output Levels to +16 dBm, each port
  • Port-to-Port Isolation: > 50 dB
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNDA-3 block 2.55 x 2.55 x 0.8"
Model Description Block Diagram Size
LNDA-4
Distribution Amplifier (LNDA-4)
  • Low Noise Distribution Amplifier (4-Way)
  • Formerly Known as LNDA6
  • Low Phase Noise Frequency Distribution
  • 5 MHz and 10 MHz Models Available
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Low Noise Voltage Regulator
  • Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
  • Output Levels to +16 dBm, each port
  • Port-to-Port Isolation: > 50 dB
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNDA-4 block 3 x 2 x 0.8"
Model Description Block Diagram Size
LNDA-6
Distribution Amplifier (LNDA-6)
  • Low Noise Distribution Amplifier (6-Way)
  • Formerly Known as LNDA8
  • Low Phase Noise Frequency Distribution
  • 5 MHz and 10 MHz Models Available
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Low Noise Voltage Regulator
  • Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
  • Output Levels to +16 dBm, each port
  • Port-to-Port Isolation: > 50 dB
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNDA-6 block (2) 4.5 x 2 x .8
Model Description Block Diagram Size
LNDA-8
Distribution Amplifier (LNDA-8)
  • Low Noise Distribution Amplifier (8-Way)
  • Formerly Known as LNDA2
  • Low Phase Noise Frequency Distribution
  • 5 MHz and 10 MHz Models Available
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Low Noise Voltage Regulator
  • Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
  • Output Levels to +16 dBm, each port
  • Port-to-Port Isolation: > 50 dB
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNDA-8 block (2) 6 x 2 x 0.8"
Model Description Block Diagram Size
LNDA-10
Distribution Amplifier (LNDA-10)
  • Low Noise Distribution Amplifier (10-Way)
  • Formerly Known as LNDA4
  • Low Phase Noise Frequency Distribution
  • 5 MHz and 10 MHz Models Available
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral Low Noise Voltage Regulator
  • Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
  • Output Levels to +16 dBm, each port
  • Port-to-Port Isolation: > 50 dB
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNDA-10 block (2) 7.375 x 2 x 0.8"
Model Description Block Diagram Size
LNFA
Filter Amplifier (LNFA)
  • Low Noise Filter Amplifier
  • RF Signal Amplification and Unwanted Signal Suppression
  • Input Frequency from 5 MHz to 1 GHz
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral 2-Section Bandpass Filter
  • Integral Attenuators for Flexibility and Customized Options
  • Gain: Up to +22 dB on some models
  • Output Level P1dB: Up to +26 dBm on some models
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNFA block 2 x 1.25 x 0.8"
Model Description Block Diagram Size
LNFDA
Filtered Dual Amplifier (LNFDA)
  • Low Noise Filtered Dual Amplifier
  • RF Signal Amplification and Harmonic Suppression
  • Input Frequency from 5 MHz to 2 GHz
  • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
  • Integral 5-Section Lowpass Filters: Harmonics: ≤ -50 dBc
  • Integral Attenuators for Flexibility and Customized Options
  • Gain: Up to +42 dB on some models
  • Output Level P1dB: Up to +26 dBm on some models
  • Nickel-Plated Machined Aluminum Housing
  • SMA(f) Input and Output Connectors, Standard
LNFDA block 3 x 1.25 x 0.8"
